Custom Ultra-precision Diamond Tools

Ultra-precision diamond tools are widely applied in the optical industry for the machining of various optical components, including concave and convex lenses, dry interferometric optics, and Fresnel lenses.

With more than ten years of experience in ultra-precision diamond tool grinding, we have achieved continuous improvements by introducing advanced ultra-precision grinding equipment and machining technologies, combined with our long-term dedication to diamond tool manufacturing.

As a result, we are capable of producing tools with a machining radius of up to R200 mm and achieving a surface waviness of 10 nm. Even for tools with large arc radii, the waviness can be effectively controlled within 100 nm.

The minimum achievable tool nose angle is 15°, and under high-magnification microscopy, the cutting edge appears smooth and free of defects. The surface roughness of both the rake face and the flank face reaches 2 nm, ensuring exceptional cutting performance and surface quality in ultra-precision machining applications.

Ultra Precision Diamond Arc Turning Tool

·  Waviness Controlled: The waviness can be selected between 0.02μm and 1μm.

·  Front clearance angles (conical or cylindrical), radius, waviness, solidshank or insert system, natural and synthetic single crystal diamonds allcan be tailored for your requirement.

Ultra Precision Diamond Turning Tool

Processing V-groove or U-groove.

Sharp point turning tool

·  The included angle range of the diamond sharp point turning tool is 15°-170° which angle error is within ±0.05°.

Grooving turning tool

·  The minimum width of the slot: H0.04mm.

·  The minimum included angle: 2°

Ultra Precision Diamond Milling Tool

The diamond milling tol is used for machining molds or free-form surface of microstructures and can ensure that the axial and radial accuracy of the cutting point is within 0.001 mm range.

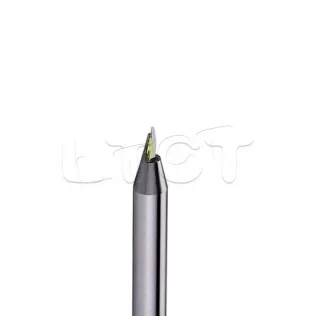

Arc milling tool

·  Radius 0.03-3.0mm

·  Shank size Φ3 to Φ6.35mm

·  The waviness can be selected between 0.05μm and 2μm

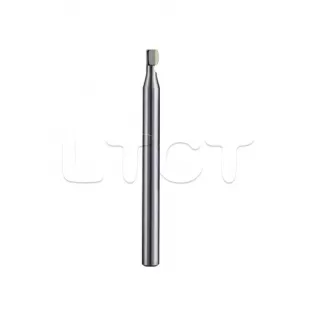

End milling tool

·  Diameter 0.12-10.0mm

·  Shank size Φ3 to Φ6.35mm

Litian Century – Ultra Precision Diamond Tools

For over 20 years, Litian Century has been dedicated to perfecting the design and manufacturing of ultra-precision diamond tools. We continuously advance our processes by applying the latest technology and the fundamental laws of physics to achieve unmatched performance and reliability.

Every tool we produce is crafted using only the highest quality diamonds and premium shank materials. Whether you require specific shapes, tight tolerances, or tools for challenging materials, we have the expertise to deliver the perfect solution.

Discover more about the advantages of single crystal diamond tools on our Diamond Facts page and see why diamond remains the ultimate standard in precision tooling.

Things to Consider When Choosing a Diamond Tool

1.  The first step is understanding the material you'll be working with. Different materials demand different tool characteristics—and some materials may not be compatible with diamond at all.

2. Surface finish, tolerances, and cutting depth all play a major role in determining the most suitable tool.

Why You Should Choose Litian Century

As a trusted partner to diamond turning machine manufacturers worldwide, Litian Century Diamond Tools is dedicated to delivering cutting-edge solutions that enhance machining performance and product quality.

Long Tool Life

Litian Century’s Ultra Precision Diamond Tools are designed to extend tool usage. They maximize the number of components produced per cutting edge and the number of reliable relaps per tool.

Industry-Leading Accuracy

Our ultra precision diamond tool radiuses achieve the highest radius tolerances, ensuring superior cutting edge accuracy for your components.

Precision diamond tools advantages

◆ Natural & Synthetic Diamonds: Choose between first-class ND or advanced synthetic options for tailored performance.

◆ State-of-the-Art Equipment: Advanced manufacturing and measurement tools ensure precision and repeatability.

◆ 20+ Years of Expertise: Skilled technicians with decades of diamond tooling experience guarantee reliability.

◆ Customizable Solutions: Diamond turning tools designed for specific applications, from microstructure grooves to optical components.

◆ High-Speed Compatibility: Compatible with high-speed machining centers for efficient, large-scale production.

Key Functions:

◆ Ultra-Precision Machining: Sub-micron tolerances for complex geometries and ultra-smooth finishes.

◆ Material Versatility: Optimized for non-ferrous metals (nickel, copper) and hard brittle materials (optical glass, silicon wafers).

◆ Durability & Consistency: Engineered to minimize tool wear and maintain performance across high-volume production.

Product Types:

◆ Single Crystal Diamond Turning Tools: Ideal for ultra-precision turning of non-ferrous metals and brittle materials.

◆ Single Crystal Diamond Milling Tools: Designed for precision milling of camera mold kernels, compound eye molds, and microstructure grooves.

Ask yourself these questions to guide the selection process:

·  What machine tool will be used?

·  What is the workpiece material?

·  What is the desired shape of the end product?

·  What depth of cut is required?

·  Does the finished product need to be optical quality?

·  What level of waviness is acceptable?

·  Are micron or submicron tolerances required?

The more information you have about your application, the easier it is to identify the perfect diamond tool. If you’re unsure or would like expert guidance, simply reach out to our team using the buttons below—we’ll be glad to help you make the right choice
