Rotogravure diamond tools—made from industrial-grade diamond tips—offer unmatched hardness and precision that enable the creation of ultra-fine engraving cells on printing cylinders, ensuring consistent ink transfer at high press speeds. Their superior wear resistance dramatically extends cylinder life, reduces downtime for tool changes, and maintains image fidelity over millions of impressions. By optimizing cell geometry and surface smoothness, diamond tools also enhance ink laydown consistency, improving color quality and reducing waste. In this article, we'll explore how these attributes translate into tangible benefits for high-volume production runs, examine best practices for tool maintenance, and illustrate why investing in diamond tooling is a cost-effective strategy for any operation relying on high-speed rotogravure printing.

What Are Rotogravure Diamond Tools?

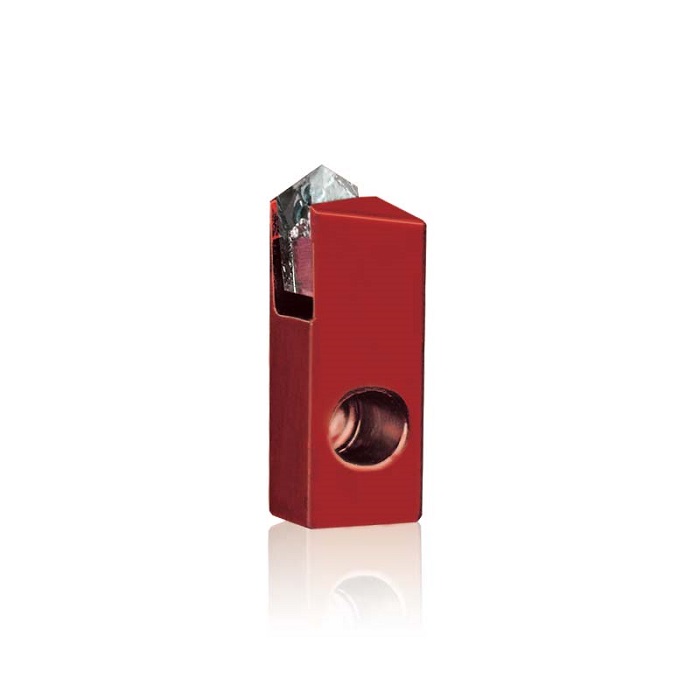

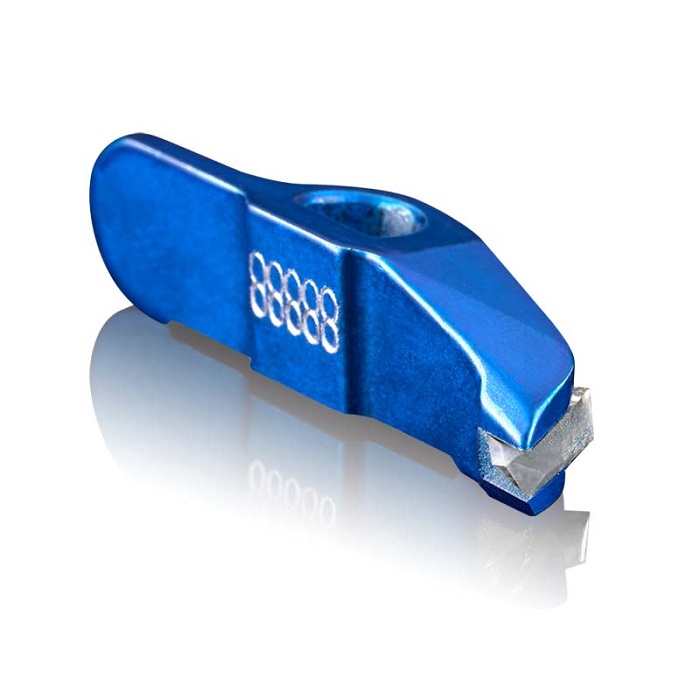

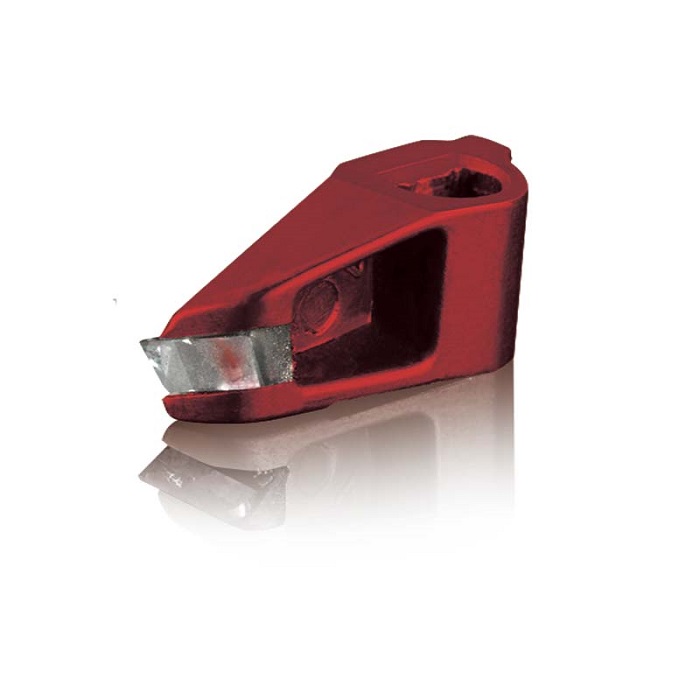

Rotogravure diamond tools consist of a precision-machined diamond tip mounted in a stylus body, designed to engrave copper or chrome cylinders used in gravure printing presses.

The diamond tip's extreme hardness (Mohs scale 10) allows it to maintain a consistently sharp point, essential for creating uniform cells that control ink volume and distribution.

Diamond tools can be custom-shaped for different cell geometries—triangular, hexagonal, or elliptical—enabling printers to fine-tune image resolution, ink density, and tonal range.

Advantages of Diamond Tools in High-Speed Printing

Exceptional Wear Resistance

Diamond's inherent hardness translates to engraving tips that last 10–20 times longer than traditional copper-tipped tools, significantly reducing tooling costs and press stoppages.

Long tool life ensures cylinders retain precise cell geometry across millions of impressions, preserving image fidelity and press efficiency throughout lengthy runs.

Superior Print Quality

By engraving cells with razor-sharp edges, diamond tools produce clean cell walls that facilitate exact ink release, resulting in rich color saturation and crisp detail reproduction—even at speeds exceeding 12,000 feet per minute.

Improved cell geometry consistency minimizes dot gain and color variation, which is critical for packaging applications demanding tight color tolerances and brand consistency.

Enhanced Press Throughput

Reduced tool wear and fewer required cylinder changes translate directly into higher machine uptime and throughput.

The ability to maintain high-quality output at top press speeds (up to 15,000 fpm on modern machines) drives down per-unit costs and accelerates order fulfillment for large-volume runs.

Key Features That Drive Performance

Precision Cell Engraving

Diamond tools enable cell depths precise to within microns, delivering exact ink volumes per cell and reducing waste from over- or under-inking.

Consistent cell depth across the cylinder surface ensures uniform ink film thickness, which is vital for high-speed operations where even minor variances can cause web breaks or print defects.

Thermal and Chemical Stability

Diamond's thermal conductivity helps dissipate heat generated during high-speed engraving, preserving tool geometry and preventing tip deformation.

Chemical inertness ensures diamond tools resist corrosion from etching solutions and inks, further extending service life and reducing maintenance intervals.

Maintenance and Best Practices

To maximize diamond tool longevity, it's essential to:

1. Use Clean, Filtered Etchants and Inks: Particulate-free fluids prevent abrasive wear on both the diamond tip and the cylinder surface.

2. Monitor Engraving Parameters: Maintain optimal engraving speed, feed rate, and depth of cut to avoid excessive mechanical or thermal stress on the diamond tool.

3. Inspect Tools Regularly: Employ optical or laser profilometry to detect any tip degradation early, allowing for timely re-grinding or replacement before print quality suffers.

Conclusion

Rotogravure diamond tools are the linchpin of high-speed, high-volume gravure printing, offering unparalleled durability, precision, and print quality. By minimizing downtime, reducing per-unit costs, and ensuring consistent image reproduction, diamond tools deliver a rapid return on investment for any gravure operation. If you're aiming to boost throughput while maintaining exacting quality standards, contact us to learn more about our diamond tool solutions and how our expertise as a leading supplier can support your production goals.
