Engraving stylus, also called diamond stylus, engraving needle, engraving knife or carving needle, installed in engraving machines, is used to engrave text, images or pattern on the copper cylinder.

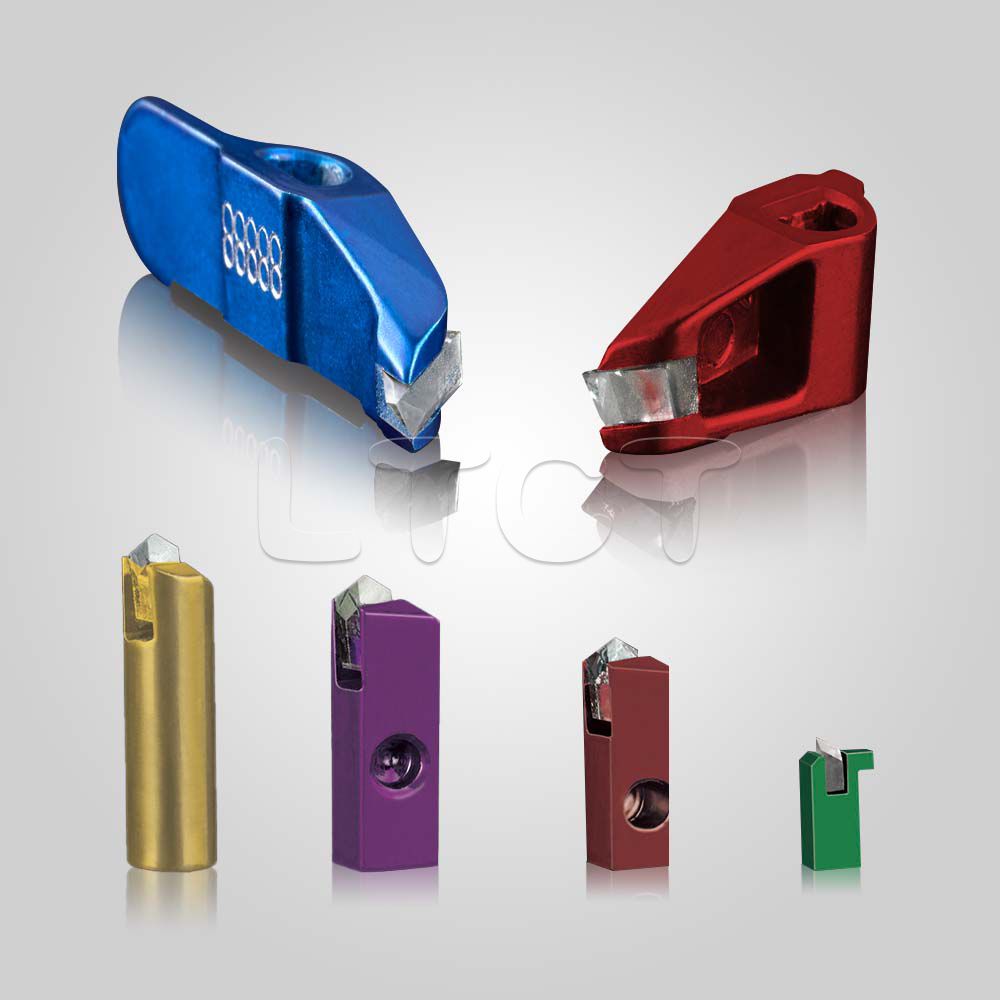

Engraving Stylus, Sliding Shoe and Burr Cutter are precision diamond tools for Rotogravure plate-making industry. All of these diamond tools are mounted on the engraving head which is a core component of the engraving machine.
A diamond stylus for the rotogravure industry is a precision tool used in the rotogravure printing process. It is a small, pointed tip made of diamond, which is renowned for its hardness and durability.
In rotogravure printing, the 8k diamond stylus is used to engrave fine lines and details onto a cylinder or plate. The engraving needle is attached to a mechanical device that moves it along the surface of the cylinder or plate in a controlled manner. As the stylus moves, it removes a thin layer of material, creating the desired image or pattern.
The diamond stylus for the rotogravure industry is crucial for achieving high-quality prints with fine details, sharp edges, and accurate reproduction of images and text. The hardness and sharpness of the diamond allow it to create precise and consistent engraving, and ensure the reproduction of intricate designs and high-resolution images.
The use of diamond styli in the rotogravure industry helps achieve high print quality, efficiency, and productivity in applications such as package printing, labels, magazines, and commercial printing.
Diamond engraving styli without wing are available in different shapes, sizes, and tip geometries to suit specific rotogravure applications and printing requirements.
As a professional engraving stylus manufacturer, Litian Century Diamond Tools can produce all kinds of Engraving styli for HELL gravure systems, OHIO gravure systems and MDC gravure systems. 20+ years' experience, strongly production capacity and first-class material make our engraving stylus can meet the engraving requirements of all kinds of products, especially for the high-grade cylinder engraving.
HELL Engraving stylus:
| HELL Engraving stylus | without wing | with wing | HELL sprint III (12K） | HELL (A head)coarse screen | |
| Series | Standard | Yes | Yes | Yes | Yes |
| PISA | Yes | Yes | NA | NA | |
| Honeycomb | Yes | Yes | NA | NA | |
| DiamondTypes | Natural Diamond | Yes | Yes | Yes | Yes |
| Synthetic Diamond | Yes | Yes | Yes | Yes | |
| Holder | Specialized Aluminum Alloy | Yes | Yes | Yes | Yes |
| Degree | 90°-160° | Yes | Yes | 110°/120°/130° | 110°/120°/130° |
| Other | Yes | Yes | NA | NA | |
Main advantages:
1. First-class ND and Advanced Synthetic Diamond
2. State-of-the-art Colorful PISA Engraving Stylus with Symmetrical Aperture
3. Long Life Span
4. Short Lead Time
5. Complete Product Series
What makes our diamond stylus different?
● Choose raw materials with excellent quality which keeps our engraving stylus with the longer lifetime.
● Applicate advanced diamond cutting, machining and blade passivation technology, decrease the breaking risk reach the minimum.
● Expert technicians and a strict quality management system ensure maximum precision within narrow tolerance limits. This ensures the consistency of our products and gets plate-making factory's cylinders excellent reducibility.
● Engraving stylus holder with advanced electroplating technology makes engraving stylus beautiful and easy to recognize.
● Each product has a unique security code(S/N) which you can check its details in our after-sales system.
Applicable Machine:
HELL Engraving stylus without wing is suitable for 8KHZ frequency electronic engraving machine, just like: Helio Gravures K500, K405, K305, K500C, K50C, K55C, K5SMART and some other Gravure machines.
Attentions:
When you install the electronic engraving stylus, please don't touch the diamond cutting edge directly with your hands or other objects. If you need to wipe it, please use isopropyl alcohol, acetone& a lint free cloth or an elder pitch. If you need more aggressive cleaning in order to remove a particular contaminant, please contact us.
Broken Engraving Stylus
The engraving stylus may break for various reasons.
Possible causes of Broken stylus tip
1. Broken tips result from incorrect setting at the engraving amplifier. The stylus penetrates more deeply than actually intended for the cut of the diamond; the rear "free" facets of the stylus hit the copper with each cut which result in the stylus overloaded and broken prematurely!
2. Impurities in the copper and excessive Vickers hardness also cause breakage. Its inclined position minimizes the risk of breakage. The cut of the stylus diamond is designed for a specific cutting behavior. The respective forces occurring during the cutting and burr removal stroke are therefore coped for with no problem. Once the force directions acting on the diamond change, the tip will break. An insufficient Vickers hardness results in poor chip removal and therefore in a poor (blurred) engraving image.
3. Other causes of tip breakage may be due to incorrect handling, such as when setting down the engraving system hard with the sliding spindle set too short, etc.
① After-sales services
Diamond tool care is extremely important. If tool cleaning is needed, wipe the diamond tools carefully using isopropyl alcohol or acetone and a lint free cloth or an elder pith. If you need more aggressive cleaning in order to remove a particular contaminant, please discuss with us.
② Quality Assurance
The company is equipped with advanced inspection equipment and trained inspection personnel which assure us carry out inspections during each process.
At the same time, every single tool can be sent to our customers after the professional inspection by Quality Control Center.
③ Repair Service
For the multi-way tools which can be repaired, we can bring your diamond tools back to "new tool" condition in a very short turnaround time. A after-sales service system is available which can let you know the condition of your repaired tools in real time.
④ Packages:
The white box for ≤110° stylus
The blue box for 110° -130° stylus
The red box for ≥130°stylus
⑤ Delivery
We can arrange delivery your goods by air, DHL, FedEx and other ways your need.
