So, what’s the key to selecting the right turning insert shape for any machining application?

The process can be broken down into three practical steps. First, you need to align the insert shape’s strength, rigidity, and cutting versatility with your specific workpiece material and machining conditions. Second, understanding the ISO insert code is essential, as it allows you to accurately interpret the insert’s geometry, tolerance, and application features. Finally, refine your choice by selecting the appropriate nose radius and insert size to achieve the best balance between cutting performance, tool life, and surface finish quality.

This guide will take you through each step in detail, turning a complex tooling decision into a simple, structured approach that helps you improve machining efficiency, stability, and overall productivity.

How Do I Match an Insert Shape to My Machining Job?

To match an insert shape to your job, you must first balance the strength required for roughing against the versatility needed for finishing. Next, analyze your toolpath to ensure proper clearance and accessibility. Finally, select an insert shape that matches the machinability of the workpiece material.

This three-step approach ensures that the insert you choose is strong enough for the cutting load, suitable for the required geometry, and compatible with the material being machined—resulting in improved performance and longer tool life.

Step 1: Balancing Strength for Roughing vs. Versatility for Finishing

The first consideration is the trade-off between strength and versatility. This is mainly determined by the insert’s shape and its nose angle, which directly affects cutting edge strength.

Think of it like a pencil tip. A sharp point allows for fine detail but breaks more easily, while a more rounded or blunt tip is stronger but less precise. Turning inserts follow the same principle.

· Larger nose angle inserts (such as square or round shapes)
These provide a stronger cutting edge and better resistance to cutting forces. They are best suited for roughing operations, where high material removal rates, deeper cuts, and higher feed rates are required.

· Smaller nose angle inserts (such as triangle or diamond shapes)
These offer better accessibility and sharper cutting action. Although less strong, they are ideal for finishing operations, especially when machining complex profiles, sharp corners, or detailed features.

As a general rule, you should always choose the largest nose angle that your machining conditions allow, in order to maximize strength and tool life.

Step 2: Assessing Your Toolpath and Clearance Needs

After determining the strength required for the operation, the next step is to evaluate the physical movement of the tool during machining. In other words, you must ask: can the insert actually reach every surface it needs to cut without interference? This is a matter of clearance and accessibility.

An insert’s shape directly affects how flexible it is in different cutting directions. For example, a square insert (S-type) is very strong and stable, making it ideal for heavy cutting. However, its geometry is limited to mainly straight turning and facing operations. If the part includes shoulders, angled surfaces, or complex contours, a square insert will often be too restrictive and may cause interference with the workpiece or tool holder.

Profiling and Undercutting Applications

When machining parts with more complex geometries, you typically need an insert with a smaller and more open cutting angle to improve accessibility.

For example:

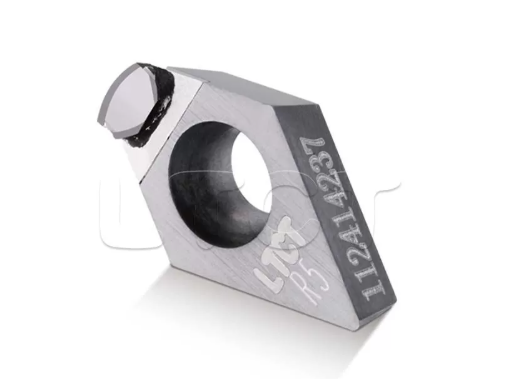

· A 55° diamond insert (D-type) provides a good balance between strength and access. It is widely used for copy turning, contouring, and profiling, especially where moderate clearance is required.

· A 35° diamond insert (V-type) offers even greater accessibility. Its sharper geometry allows it to reach tight areas, making it suitable for fine profiling, sharp internal corners, and undercut features that other insert shapes cannot effectively machine.

In general, the smaller the nose angle, the better the insert can “reach” into tight or complex areas—but this usually comes with reduced cutting strength.

Step 3: Considering Your Material’s Machinability

Finally, the material you are cutting plays a major role in your selection. Different materials generate different levels of cutting force and heat on the cutting edge, which requires specific insert characteristics.

Hardened Steels and Superalloys

Materials such as Inconel, titanium, and hardened steels (>45 HRC) are difficult to machine. They generate extreme heat and cutting pressure, which can easily chip or break a weak cutting edge. For these applications, strength is the top priority.

Recommendation: Use the strongest shapes possible, such as Round (R) or Square (S) inserts. These shapes distribute cutting force and heat over a larger area, helping protect the cutting edge and extend tool life.

General Purpose Steels and Cast Irons

Carbon steels, alloy steels, and cast irons are the most common machining materials. They provide a balanced level of machinability and strength.

Recommendation: The 80° diamond (C) insert is often considered the workhorse for these materials, offering a good balance of strength for medium roughing and versatility for general turning. For more profiling-oriented applications, the 55° diamond (D) is a reliable alternative.

Aluminum and Non-Ferrous Metals

Materials such as aluminum and brass are soft and easy to machine. The main challenge is not cutting resistance, but preventing built-up edge (BUE), where material sticks to the cutting edge.

Recommendation: Sharp, highly positive geometries such as the Triangle (T) insert are highly effective. They provide a clean shearing action, reduce adhesion, and help ensure smooth chip evacuation and good surface finish.

Because machinability and cutting performance can vary depending on the exact material grade, it is always recommended to confirm specific geometry and grade selection with our specialist to ensure optimal results.

How Do I Read ISO Codes to Identify the Shape?

This standardized system, developed by the International Organization for Standardization (ISO), works like a universal language for machinists. To read an ISO insert code, you decode it step by step, position by position. The first letter identifies the insert shape, the second letter defines the clearance angle, and the third and fourth elements typically describe tolerance, chipbreaker geometry, and hole type.

The First Letter: Shape (C, D, T, W)

The first letter of the ISO code is one of the most important, as it defines the basic shape of the insert. This shape directly affects strength, cutting ability, and application range.

The Second Letter: Clearance Angle

The second letter defines the clearance angle, also known as the relief angle. This is the angle between the insert flank and the workpiece surface, and it is essential for preventing rubbing during cutting. Poor clearance can lead to heat buildup, tool wear, and poor surface finish.

This letter also indicates whether the insert is positive or negative.

Negative inserts (e.g., “N” = 0° clearance)
These inserts are flat on both sides and do not have built-in clearance. Instead, clearance is created by the tool holder. Because they are double-sided, they can often be indexed and used on multiple edges, making them stronger and more economical for roughing operations.

Positive inserts (e.g., “C” = 7°, “P” = 11°)
These inserts have built-in clearance, which reduces cutting forces. They are ideal for finishing, light cutting, and machining long or flexible parts. However, they are typically single-sided and have fewer usable edges compared to negative inserts.

The Third and Fourth Characters: Chipbreaker and Hole Design

The third and fourth characters in the ISO code provide additional details about the insert structure, especially chip control and mounting style.

One of the most important features here is the chipbreaker.

A chipbreaker is a specially designed surface geometry on the insert that helps control chip formation during cutting. Instead of producing long, continuous chips, it breaks them into smaller, safer, and more manageable pieces. This improves safety, reduces tool entanglement, and protects surface quality.

The fourth letter generally describes the hole type and chipbreaker configuration:

G: Through-hole with chipbreakers on both sides
M: Through-hole with chipbreaker on one side
A: No hole, chipbreaker on one side
N: No hole and no chipbreaker (flat top insert)

Important Note on Chipbreaker Codes

While the ISO letter provides a general classification, the actual chipbreaker design is usually defined by additional suffix codes such as -PM, -PF, -RM, etc. These codes are often manufacturer-specific, meaning the same suffix can perform differently depending on the brand.

For this reason, it is always recommended to consult the tooling manufacturer’s catalog when selecting a chipbreaker, especially for applications involving specific materials or cutting conditions.

What Other Critical Features Affect Performance?

Beyond insert shape, the two most important factors affecting turning performance are:

· Nose Radius — influences surface finish, cutting pressure, and edge strength

· Insert Size (IC) — determines load capacity, rigidity, and cutting stability

These parameters fine-tune machining performance by balancing efficiency, surface quality, and tool life.

Selecting the Correct Nose Radius

The nose radius is the rounded corner at the insert tip. Although small, it has a major impact on cutting behavior and machining stability.

In general, choosing a nose radius is a balance between strength and cutting pressure.

Larger Nose Radius

A larger nose radius creates a stronger cutting edge by distributing cutting force and heat over a wider area.

Advantages:

· Better edge strength and tool life

· Allows higher feed rates

· Produces smoother surface finishes under stable conditions

Limitations:

· Generates higher radial cutting pressure

· May cause vibration on thin or low-rigidity workpieces

Smaller Nose Radius

A smaller nose radius creates a more concentrated cutting point.

Advantages:

· Lower cutting pressure

· Better for finishing and sharp corner machining

· Reduces vibration on slender or unstable parts

Limitations:

· Weaker cutting edge

· Not suitable for heavy cuts or high feed rates

Nose Radius and the ISO Code

Conclusion

Selecting the right turning insert is not about finding a single “best” shape, but following a logical process. First, understand your job requirements, including roughing vs finishing, toolpath clearance, and material type. Then use the ISO code to identify the correct insert geometry with confidence. Finally, optimize performance by selecting the right nose radius and insert size (IC).

When these factors are combined, insert selection becomes a structured decision instead of guesswork, helping you achieve better machining efficiency, surface quality, and tool life.
