The final surface finish achieved through diamond turning is influenced by multiple factors. Understanding these factors is essential for optimizing machining results.

Workpiece Material

Selecting a material compatible with diamond turning tool is critical to achieve smooth cutting and minimize surface damage. Material properties, including grain structure and the presence of impurities, directly affect the achievable surface quality. Choosing the right workpiece material is therefore key to meeting stringent surface finish requirements.

For example, electroless nickel can achieve surface finishes below 1nm Ra when diamond-turned. Cutting parameters, such as depth of cut and surface speed, can influence tool wear and the resulting finish in certain cases; however, surface speed generally has a negligible effect for most diamond-turnable materials.

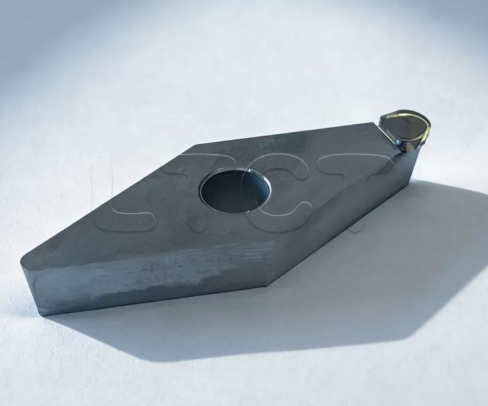

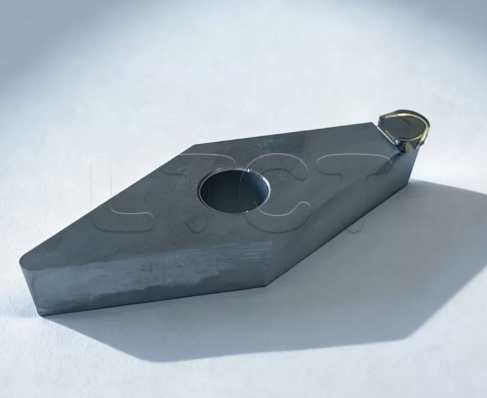

Diamond Tool Considerations

Diamond tools used in turning must be extremely sharp, free of nanoscale chips or defects. Optimizing the tool’s rake angle and radius for the specific workpiece material is essential to achieve superior surface finish. Proper lubrication and effective chip removal mechanisms further contribute to improved surface quality.

To minimize vibrations during turning, the diamond should be firmly mounted on a stiff tool shank, which in turn must be securely fixed to a rigid tool holder. Thin workpieces require additional support, typically achieved by rigidly attaching them to the diamond turning setup.

The theoretical limit of surface finish in diamond turning is determined by cusps formed on the workpiece when using a circular-shaped tool. Reducing the feed rate can help minimize these cusps, but it also significantly affects the overall cost and efficiency of the machining process.

Cutting and Dynamic Forces

Static deflection, caused by the static component of cutting forces, does not directly affect surface finish but can contribute to form errors. In contrast, diamond turning machines are primarily influenced by dynamic forces, which are often much higher than the cutting forces themselves. A machine’s ability to resist these dynamic forces—its dynamic stiffness—is a critical factor in determining achievable surface finish.

Measuring dynamic stiffness is more complex than assessing static stiffness. It depends on the machine’s damping characteristics, inertias, and natural frequencies, all of which collectively define its response to high-frequency dynamic loads during turning.

Spindle Influence

The spindle plays a critical role in surface finish by introducing high dynamic forces into the diamond turning machine. Most of these forces are synchronous with spindle rotation. However, asynchronous forces can also occur due to air pressure pulsations or electrical noise in the motor amplifier. These non-repeating forces generally do not degrade surface finish but can be mitigated by using a dynamically stiff machine and spindle. The most effective solution is employing a high-quality amplifier with low-noise cabling to minimize these disturbances.

Environment and Peripheral Devices

Dynamic forces from the surrounding environment can also impact diamond turning performance. Sources include machine vibrations caused by acoustic pressure, seismic activity, or nearby equipment. Pneumatic vibration isolators and acoustic enclosures can help mitigate these effects, but such measures are most critical for machines with lower dynamic stiffness.

Even after isolating environmental vibrations, sufficient dynamic stiffness is essential to resist forces generated by onboard components such as hoses, transformers, motors, pumps, compressors, and fans. If the machine or spindle is dynamically compliant, these forces can directly affect surface finish, making robust design and equipment integration key to achieving optimal results.

Positioning System

The motion control system of a diamond turning machine significantly influences surface finish. Achieving high dynamic stiffness along the drive axes requires a high servo bandwidth, which depends on the machine’s resonant frequencies, the response time of the position sensors, and the servo update rate.

Surface finish can also be affected by timing errors in the controller, as well as electrical noise from slide actuator cables and power amplifiers. Additionally, the structural path between the workpiece and the position sensor, and between the tool tip and the sensor, plays a role in determining the machine’s precision and the quality of the finished surface.

Sensor Resolution

In a diamond turning machine, the slides both hold and sense position, making the resolution and noise level of the position sensing system critical. Very fine resolution can be achieved through high levels of interpolation between grating lines on a scale.

However, interpolation introduces small errors that can affect surface finish differently from electrical noise. In practice, the effective sensor resolution in diamond turning is several orders of magnitude finer than the overall sensor accuracy or the precision of the rest of the machine. Consequently, sensor noise and resolution generally have a minimal impact on surface finish compared to other factors.

Averaging Effects

While surface finish is influenced by all the previously discussed factors, it is not accurate to simply sum their effects, as some factors can partially offset others. A more appropriate method is to use the root-sum-square (RSS) of the standard deviation of each error source to estimate the RMS surface finish (Rq). In practice, this often overestimates the actual finish due to the averaging effect inherent in diamond turning.

At slow feed rates, vibrations can cause the diamond tool to miss cutting on certain revolutions. The tool engages the workpiece only at the low point of each vibration cycle, cutting “air” at the high points. This averaging effect becomes more pronounced with slower feeds and higher vibration frequencies. Under ideal conditions, the theoretical surface finish (Rmax) can be below 1 nm PV, where the averaging effect dominates.

In practice, low-frequency error sources—such as leveling response, thermal cycling, or pneumatic isolator behavior—also influence surface finish. Therefore, an optimum feed rate must be selected to minimize machine-induced finish errors. The extent of averaging is ultimately limited by the material properties of the workpiece.

Conclusion

Achieving the best surface finish in diamond turning depends on the overall machine system rather than any single component. Factors such as the controller, sensor resolution, or spindle stiffness are important, but the ideal machine is a harmonized system where all components work seamlessly together. Only such a system can reliably produce superior optical components with high throughput and consistent surface quality.
