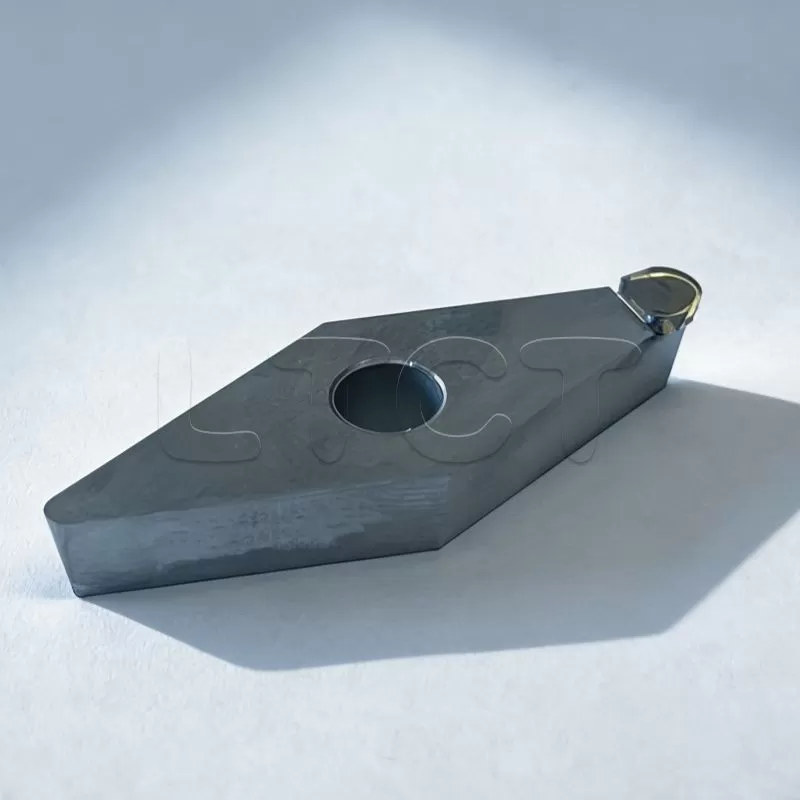

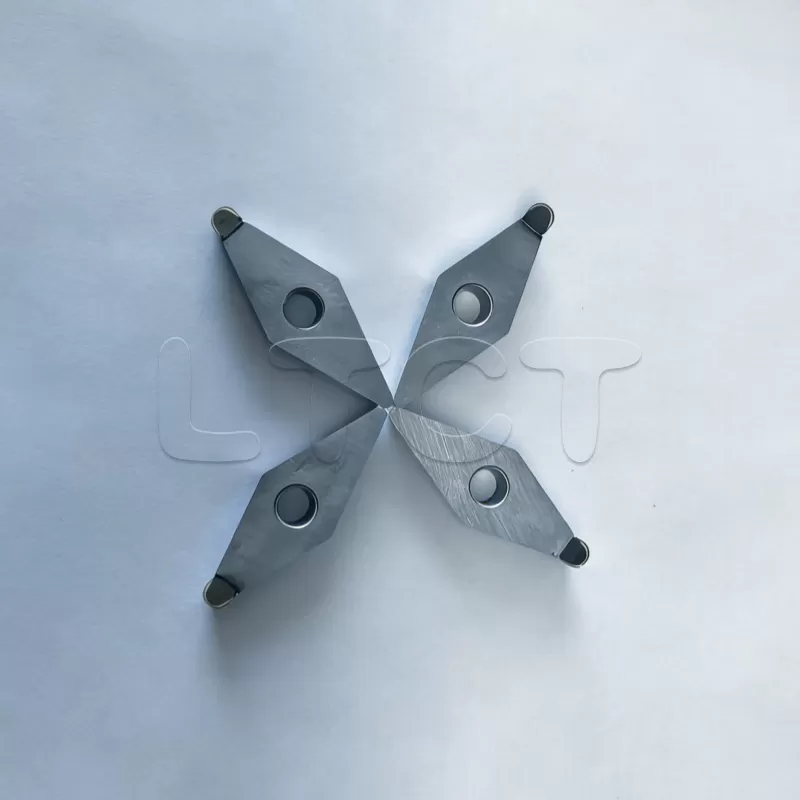

Our diamond turning inserts for automotive are designed for ultra-precision machining of optical components and non-ferrous parts. As a professional single crystal diamond tools manufacturer, we provide high-performance solutions for automotive optics, molds, and advanced components requiring nanometer-level surface finish.
Ultra-precision diamond turning tools play a pivotal role in the automotive industry, serving as essential solutions for machining high-value components—from injection molds for vehicle camera lenses and LED headlights to aluminum alloy wheels and hard-to-machine carbon fiber composites.
As the automotive sector pushes forward with its shift toward light weighting, intelligence, and new energy vehicles, the precision of these key components directly shapes a vehicle’s overall performance and build quality. With our ultra-precision tools, manufacturers can effortlessly achieve high-gloss strip finishing on aluminum alloy wheels.
To tackle the unique challenges of carbon fiber machining, our tools are designed with exceptional wear and impact resistance. This key feature not only extends tool lifespan significantly but also avoids common defects like material delamination and fraying—directly supporting the industry’s ongoing pursuit of lightweight automotive design.
Made from high-purity synthetic diamond and featuring specialized edge geometries, these tools outperform conventional carbide or coated cutting tools, delivering superior surface finishes and longer operational life for consistent, reliable machining results.
Materials Suitable for Automotive Machining
Oursingle crystal diamond tools for automotive optics are optimized for:
· Aluminum alloys
· Copper and brass
· Nickel-phosphorus plated materials
· Optical plastics (PMMA, PC)
Our automotive diamond turning inserts can be used for:
| Application Area | Typical Automotive Parts | Main Machining Requirement |
| Automotive optical molds | Camera lens molds, LiDAR optics molds, HUD molds, lighting lens molds | Optical-grade surface finish, high form accuracy, stable edge quality |
| Reflective components | HUD mirrors, LED reflectors, sensor reflectors, aluminum mirrors | Mirror surface turning, low roughness, high gloss |
| Non-ferrous automotive parts | Aluminum wheels, trims, copper/brass precision parts, aluminum housings | Smooth cutting, burr control, surface consistency |
| NiP plated molds | Lens molds, optical inserts, precision mold cavities | Ultra-precision turning, controlled tool geometry, low polishing allowance |
| Lightweight material machining | Selected composites or non-metallic automotive components | Edge quality, wear resistance, machining stability |
For applications focused on camera lens molds, LiDAR optical molds and HUD optical molds, you can also refer to our dedicated page: Diamond Tools for Automotive Lens Molds.
Automotive camera systems require stable optical performance, especially for ADAS, parking assistance, surround-view systems and autonomous driving sensors. Diamond turning tools are used to machine lens molds and optical inserts with accurate profiles and fine surface finish.
Custom diamond inserts can be designed for:
· Camera lens molds
· Aspheric lens molds
· Plastic optical lens molds
· NiP plated mold inserts
· Micro optical surfaces
· Precision mold cavities
For these parts, the tool nose radius, waviness, edge sharpness and cutting direction must be matched with the mold profile and surface finish requirement.
LiDAR systems require precision optical surfaces for beam shaping, reflection, focusing and signal control. Diamond turning tools are commonly used for ultra-precision machining of LiDAR optical mold inserts and selected optical components.
Typical requirements include:
· High form accuracy
· Low surface roughness
· Stable edge geometry
· Controlled tool marks
· Consistent performance for small or medium batch production
For LiDAR-related molds, tool customization is usually based on material, optical profile, machining path and required surface quality.
Head-up display systems require reflective surfaces with excellent smoothness and dimensional stability. Diamond turning inserts can help produce high-gloss and mirror-quality surfaces on suitable non-ferrous materials and plated mold surfaces.
Typical parts include:
· HUD mirror molds
· Reflective inserts
· Aluminum mirror components
· NiP plated optical molds
· Freeform reflective surfaces
For HUD and reflective parts, the cutting edge waviness and tool radius are especially important because small tool defects can appear directly on the optical surface.
Automotive lighting systems use complex reflective and optical surfaces to control light output, beam direction and visual appearance. Diamond turning tools are suitable for precision machining of LED reflector molds, lighting lens molds and high-gloss reflective inserts.
These tools can support:
· LED headlight reflector molds
· Tail lamp optical molds
· Signal lamp reflector molds
· Interior lighting molds
· Aluminum reflective components
Compared with general cutting tools, single crystal diamond tools provide sharper cutting edges and better surface quality for suitable non-ferrous and optical mold materials.
Besides optical mold machining, diamond turning inserts are also used for high-gloss machining of non-ferrous automotive components. For aluminum alloy, copper, brass and selected plated materials, diamond tools can reduce burrs, improve surface smoothness and provide stable cutting performance.
Typical applications include:
· Aluminum alloy wheels
· Decorative aluminum trims
· Aluminum housings
· Copper and brass precision components
· Reflective non-ferrous parts
· Precision automotive mold inserts
For high-volume aluminum machining, PCD tools may be more suitable in some cases. For mirror surface turning and ultra-precision finishing, single crystal diamond or mono crystal diamond tools are often preferred.
Automotive optical components require a very different machining standard compared with general mechanical parts. Surface defects, vibration marks, poor tool edge quality or incorrect tool geometry can directly affect optical performance.
Single crystal diamond tools are selected for automotive optical machining because they can provide:
· Extremely sharp cutting edge
· Fine surface finish on suitable materials
· Stable mirror surface turning
· Reduced polishing allowance
· Good profile control
· Clean cutting of non-ferrous metals and optical plastics
· Custom geometry for complex optical molds
· Better surface consistency for precision components
For mold manufacturers, reducing manual polishing is an important benefit. A properly designed diamond turning tool can help improve mold surface quality directly after machining, shorten finishing time and improve repeatability.
What are diamond turning tools used for in automotive industry?
They are mainly used for machining optical components such as HUD mirrors, camera lenses, and high-precision molds.
Can diamond tools machine aluminum automotive parts?
Yes, diamond tools are ideal for non-ferrous materials like aluminum, offering excellent surface finish and tool life.
What surface finish can be achieved?
Surface roughness can reach nanometer-level (Ra < 10 nm), suitable for optical applications.
LTCT Diamond Tools offers complete customization to meet any unique machining requirement. Whatever your application demands, please consult with us—we have the capability to manufacture the exact tool you need.

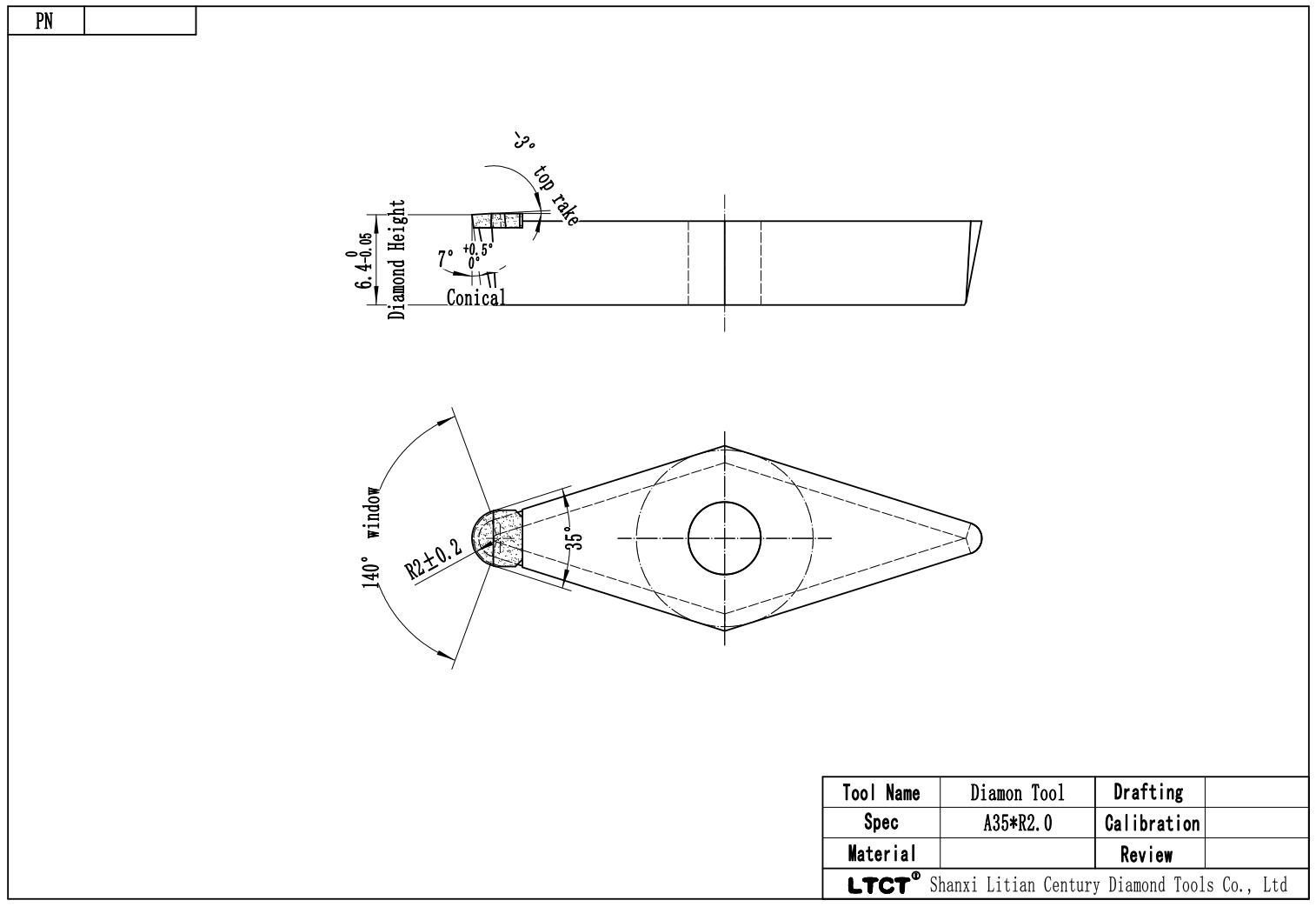

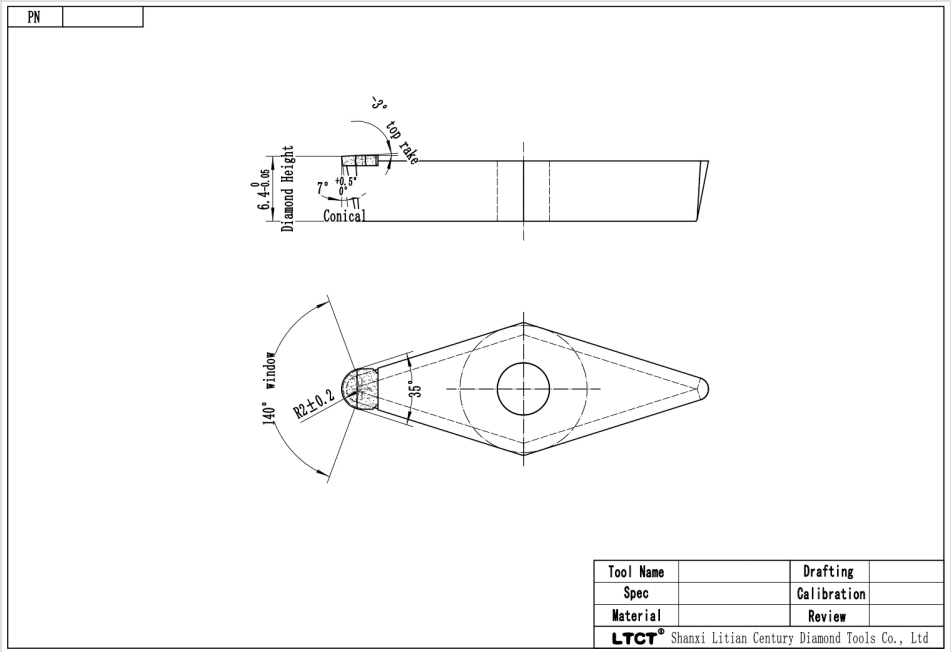

Automotive precision machining often requires customized tool geometry rather than standard inserts. We can design diamond turning tools and inserts according to your drawing, machining process and accuracy requirement.
Custom options include:
| Custom Item | Available Options |
| Tool type | Turning tool, boring tool, grooving tool, arc tool, sharp point tool, insert type tool, solid shank tool |
| Nose radius | Customized according to profile, surface requirement and machining path |
| Included angle | Designed according to tool clearance and workpiece geometry |
| Rake angle | Positive, neutral or negative angle depending on material and cutting condition |
| Clearance angle | Customized to avoid interference and support stable cutting |
| Cutting edge | Straight edge, arc edge, sharp point, special profile or micro geometry |
| Tool holder | Solid shank, round shank, square shank, insert holder, machine-specific holder |
| Shank material | Steel, carbide or customized holder material |
| Machining direction | Left-hand, right-hand or special cutting direction |
| Inspection | Edge inspection, geometry check and quality control before delivery |
Tool Clamping
· Handle the tool lightly when clamping
· Do not contact the diamond tip directly
· After removing the Diamond Turning Tool, place it back in the tool box immediately
· Do not leave tools exposed to avoid damaging the diamond
Tool Cleaning
· Wipe the diamond tips gently with a clean foam stick dipped in industrial alcohol
· Avoid excessive force or abrasive materials that could damage the cutting edge
