In the field of precision optics, especially for infrared (IR) systems, the demand for ultra-smooth, highly accurate surfaces is more critical than ever. Infrared lenses and components are essential in applications ranging from thermal imaging and environmental monitoring to defense and scientific research. The performance of these systems hinges heavily on the quality of their optical components, where even microscopic surface irregularities can degrade image clarity and system sensitivity.

Polycrystalline Diamond (PCD) turning has emerged as a cutting-edge manufacturing technology that addresses these stringent demands. By leveraging the exceptional hardness and wear resistance of diamond tools, PCD turning enables the creation of optical surfaces with unparalleled smoothness and dimensional precision. This article explores the principles, advantages, and applications of PCD turning in optical lens manufacturing for infrared systems, along with the latest technological advancements driving this field forward.

Understanding PCD Turning

PCD turning is a precision machining process that uses diamond-tipped cutting tools to shape optical components. Unlike traditional grinding and polishing techniques, which rely on abrasive particles, PCD turning employs the hardness of synthetic polycrystalline diamond to directly machine surfaces with nanometer-level smoothness. This capability is particularly vital for materials that are challenging to process by conventional methods, such as calcium fluoride (CaF₂), zinc selenide (ZnSe), and other exotic infrared-transmissive crystals.

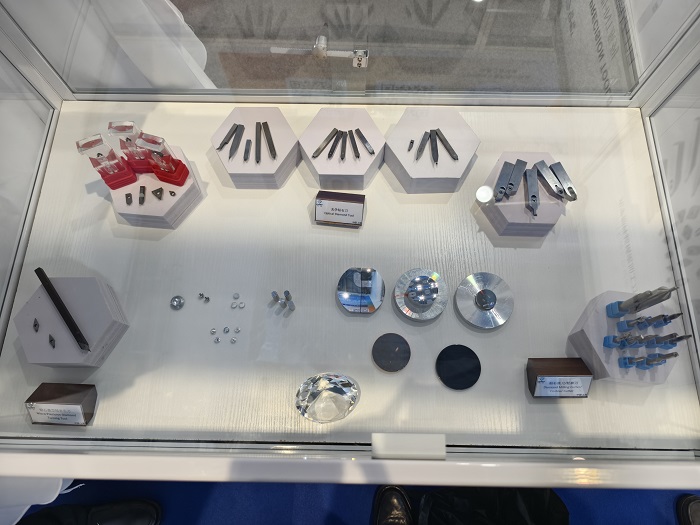

The diamond tools used in PCD turning are manufactured through high-pressure, high-temperature synthesis processes that yield a dense and extremely hard material. These tools maintain sharp cutting edges over prolonged periods, enabling consistent, high-quality surface finishes across complex geometries. This is critical for the manufacture of aspheric lenses and freeform optics increasingly used in advanced IR systems.

Advantages of PCD Turning in Optical Lens Manufacturing

1. Superior Surface Finish

PCD turning achieves surface roughness values as low as 1 nanometer (nm), far surpassing what is possible with traditional polishing methods. This ultra-smooth finish minimizes light scattering and absorption, leading to higher transmission efficiency and improved optical performance in IR systems.

2. Exceptional Dimensional Accuracy

The process delivers form accuracy within a few hundred nanometers, ensuring optical elements meet tight tolerances essential for complex lens assemblies. This precision reduces aberrations and enhances the imaging quality of IR devices.

3. Broad Material Compatibility

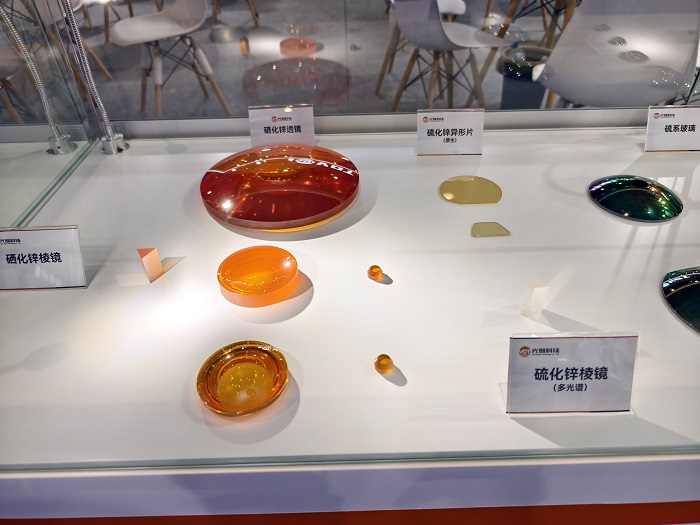

Many IR optical materials are brittle or chemically sensitive, making them difficult to process. PCD turning is suitable for a variety of such substrates including CaF₂, ZnSe, ZnS, BaF₂, and chalcogenide glasses, enabling manufacturers to produce diverse IR components on a single platform.

4. Enhanced Manufacturing Efficiency

By eliminating multiple polishing and post-processing steps, PCD turning reduces production time and cost. This efficiency gain is particularly advantageous in high-volume manufacturing or when producing custom optical elements with complex shapes.

5. Increased Tool Life

Diamond’s extreme hardness translates to long-lasting cutting tools that maintain performance over many production cycles. This durability lowers tooling costs and helps maintain consistent quality in mass production.

Applications in Infrared Systems

PCD turning technology plays a pivotal role in manufacturing components for a wide range of IR applications:

Thermal Imaging Cameras: High-precision lenses and mirrors created through PCD turning enable sensitive detection of thermal radiation, crucial for military, medical, and industrial uses.

Infrared Laser Systems: Optical elements must withstand high laser power without degradation. PCD turning produces surfaces that help maintain laser beam quality and system reliability.

Spectroscopy Instruments: The ultra-smooth surfaces minimize signal loss and distortion, facilitating accurate chemical analysis and environmental sensing.

Space and Defense Optics: High-performance IR optics used in satellites and surveillance systems benefit from the exceptional durability and precision offered by PCD-turned components.

Technological Innovations Driving PCD Turning

The continual evolution of PCD turning is fueled by advances in machine tools, control systems, and tooling technology:

Fast Tool Servo (FTS) Systems: These systems allow real-time, high-frequency adjustments to the cutting tool position, enabling the machining of highly complex and freeform surfaces with superior accuracy.

Ultra-Precision Lathes: Modern lathes designed for diamond turning feature nanometer-level positional control, vibration damping, and temperature stabilization, ensuring consistent surface quality.

Hybrid Manufacturing Approaches: Integration of PCD turning with other finishing processes such as magnetorheological finishing (MRF) and ion beam figuring allows even finer surface tuning where required.

Advanced Coatings and Tool Designs: Innovations in diamond tool coatings and geometries improve cutting efficiency and surface finish quality while expanding the range of machinable materials.

Conclusion

PCD turning represents a transformative leap in the manufacture of optical lenses for infrared systems. Its ability to produce ultra-smooth surfaces with nanometer precision directly impacts the performance, reliability, and cost-efficiency of IR optics. As this technology continues to advance, it will play an increasingly vital role in enabling the next generation of infrared imaging, sensing, and laser systems.
