Monocrystalline Diamond (MCD) tools are cutting tools manufactured from a single, flawless diamond crystal, offering exceptional sharpness and unmatched precision for ultra-fine machining applications. They are widely used on non-ferrous metals, plastics, and optical materials to produce superior surface finishes and outstanding dimensional accuracy, often reducing or eliminating the need for secondary polishing. However, their high initial cost and inherent brittleness mean they are best suited for specialized, high-value applications. As a result, MCD tools are commonly used in industries such as optics, medical devices, electronics, semiconductors, and luxury goods, where precision and surface quality are paramount.

What Makes Monocrystalline Diamond Unique for Tooling?

So, what exactly makes monocrystalline diamond the preferred choice for ultra-precision cutting tools?

Monocrystalline Diamond (MCD), also known as Single-Crystal Diamond (SCD), is distinguished by its single, continuous crystal lattice structure. This flawless and uniform crystal arrangement gives MCD exceptional hardness, outstanding wear resistance, and excellent thermal conductivity. Most importantly, it enables the creation of ultra-sharp cutting edges at the atomic level—significantly sharper than those achievable with other cutting tool materials—which is the foundation of its ultra-precision machining performance.

The Edge of Perfection: Understanding the Single-Crystal Structure

Imagine a diamond that is not composed of numerous small diamond crystals bonded together, but instead exists as one continuous, uninterrupted crystal. That is the essence of monocrystalline diamond.

Unlike Polycrystalline Diamond (PCD), which consists of multiple diamond grains bonded together, MCD features a uniform and continuous atomic structure. There are no grain boundaries—the interfaces where individual crystals meet and potential weaknesses can occur in polycrystalline materials.

Think of it this way:

· PCD: Like a wall built from many individual bricks. The mortar joints between the bricks can act as potential weak points.

· MCD: Like a structure carved from a single solid block of stone. It remains uniform and consistent throughout.

This fundamental difference—the absence of grain boundaries—is what gives MCD many of its unique advantages in tooling applications. It results in highly predictable and consistent performance, even at the atomic level, making MCD an ideal material for ultra-precision machining and mirror-finish surface generation.

Key Material Properties: Hardness, Wear Resistance, and Thermal Conductivity

The perfect, uninterrupted crystal lattice of Monocrystalline Diamond (MCD) gives it a unique combination of material properties that make it highly effective for precision cutting applications.

Extreme Hardness

Diamond is renowned as one of the hardest materials known, and MCD fully embodies this characteristic. Its exceptional hardness enables it to machine challenging materials with minimal deformation of the cutting edge. As a result, MCD tools can maintain their precise geometry and cutting performance over extended periods of operation.

Outstanding Wear Resistance

MCD's extreme hardness directly contributes to its excellent wear resistance. Combined with its uniform crystal structure, it offers exceptional resistance to abrasive wear during machining. Within its ideal application range—particularly for non-ferrous metals, plastics, and optical materials—MCD tools experience significantly less wear than many conventional cutting materials. This translates into longer tool life and more consistent machining results.

Superior Thermal Conductivity

MCD is also recognized for its exceptionally high thermal conductivity, surpassing that of many common engineering materials, including copper. During machining, heat generated at the cutting zone can be rapidly transferred away from the cutting edge and dissipated through the tool body.

This efficient heat management provides several important benefits:

· Helps keep the cutting edge cooler, reducing thermal wear and extending tool life.

· Minimizes heat accumulation in the workpiece, helping maintain dimensional accuracy.

· Reduces the risk of thermal damage when machining delicate components or heat-sensitive materials such as polymers and optical plastics.

It should be noted that actual hardness and thermal conductivity values may vary slightly depending on factors such as crystal quality, crystallographic orientation, and manufacturing methods. For critical machining applications, consulting the tool supplier for detailed material specifications is always recommended.

How MCD Achieves Atomically Sharp Cutting Edges

One of the most distinctive advantages of Monocrystalline Diamond (MCD) in ultra-precision machining is its ability to achieve exceptionally sharp cutting edges. This capability stems directly from its single-crystal structure and the absence of grain boundaries.

Because MCD consists of one continuous crystal lattice, it can be precisely ground and polished to create an extremely sharp and smooth cutting edge that is difficult for other tool materials to match.

No Grain Boundaries, No Inherent Weak Points

Unlike polycrystalline materials, MCD contains no grain boundaries that can act as weak spots. As a result, the cutting edge is less susceptible to chipping or micro-fracturing during tool fabrication or machining operations.

A Continuous and Uniform Cutting Edge

The uninterrupted crystal structure allows the cutting edge to be formed along a single crystal plane, creating a continuous and highly uniform cutting line. This level of structural consistency is essential for achieving ultra-precise machining results.

Nanometer-Level Edge Sharpness

MCD tools can be sharpened to edge radii measured in nanometers (billionths of a meter). This is considerably sharper than the cutting edges typically achievable with Polycrystalline Diamond (PCD) tools, which are limited by the size and distribution of individual diamond grains, as well as conventional carbide tools.

Why Does Edge Sharpness Matter?

An atomically sharp cutting edge removes material through a clean shearing action rather than pushing or plowing through the workpiece. At the microscopic level, this results in smoother material removal, lower cutting forces, and reduced surface damage.

This precise shearing mechanism is a key reason why MCD tools are capable of producing mirror-like surface finishes, superior dimensional accuracy, and intricate micro-scale features that are difficult to achieve with other cutting tool materials.

What Common Forms Do MCD Tools Take?

Now that we understand what makes Monocrystalline Diamond (MCD) unique, the next question is: what types of tools are actually made from this material?

MCD tools are available in a wide range of configurations, each designed to meet the demands of ultra-precision machining. Common forms include standard inserts for indexable tool holders, precision turning and boring tools for lathe operations, various milling cutters such as face mills and end mills, as well as form tools designed to produce specific features including grooves, profiles, and chamfers. In addition, highly specialized MCD tools are used for applications such as engraving, fly cutting, and grinding wheel dressing. For unique machining requirements, custom-designed MCD tools can also be manufactured to meet precise application needs.

Standard Inserts and Indexable Tooling

Think of these like the replaceable razor blades for a safety razor, but for high-tech machining!

What they are: Small, precisely shaped pieces of MCD (often brazed onto a carbide base) that are mechanically clamped into a tool holder.

Why use them: When the cutting edge wears, you don’t replace the entire tool—just the small, less expensive insert. This is common in many machining operations.

Common Shapes: MCD inserts often follow industry-standard shapes like triangles, squares, or rhombuses. However, the specific geometry (angles, edge preparation) is optimized for MCD’s properties.

Because insert sizes, shapes, and specific geometries can vary widely between manufacturers and applications, it’s essential to check with your supplier to ensure you get the right insert for your specific holder and task.

Precision Turning and Boring Tools

These tools are typically used on lathes, where the workpiece rotates while the tool shapes it.

Turning Tools: Used to machine the outer diameter of a rotating part. They usually consist of a steel shank (the tool body) with a small MCD tip precisely brazed or bonded at the end.

Boring Tools: Used to machine the inner diameter of a hole in a rotating part, enlarging it or improving its precision. Like turning tools, they feature a shank with an MCD cutting tip designed to operate inside the bore.

The key principle is that the tool moves linearly while the workpiece rotates, allowing the sharp MCD cutting edge to produce highly accurate cylindrical surfaces.

Milling Cutters (e.g., Face Mills, End Mills)

Unlike turning, where the workpiece rotates, milling involves a rotating tool cutting a stationary or slowly moving workpiece.

Face Mills: These are typically large-diameter cutters used to produce broad, flat surfaces. An MCD face mill may include one or sometimes multiple MCD inserts mounted on the cutter body. They are used to achieve excellent flatness and surface finish, especially on materials like aluminum or acrylic.

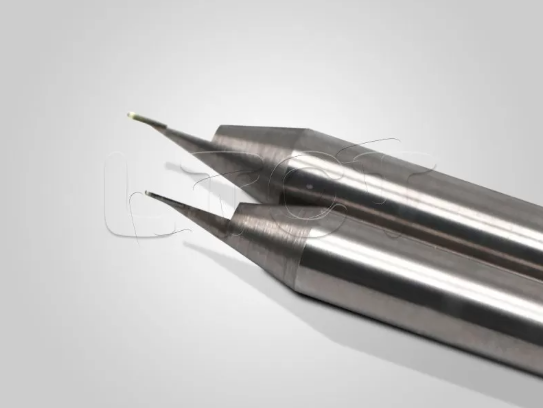

End Mills: These resemble drill bits but are designed to cut both at the tip and along the sides. MCD end mills are used for machining slots, pockets, contours, and complex profiles. They typically feature a single MCD cutting edge at the tip or along the side, mounted on a carbide body for rigidity.

Grooving, Profiling, and Chamfering Tools

These tools are designed to create specific features on a workpiece.

Grooving Tools: These have a narrow MCD tip used to cut channels or grooves with a defined width and depth into a part.

Profiling Tools: The MCD cutting edge is ground into a specific shape, often complex (such as curves or combinations of angles), to reproduce an exact profile on the workpiece.

Chamfering Tools: These are designed with an angled MCD cutting edge to produce a clean and precise bevel or chamfer on the edge of a part.

The accuracy of the final feature depends directly on how precisely the MCD cutting edge itself is formed.

Specialized Tools (e.g., Engravers, Dressers, Fly Cutters)

Beyond the more common tool types, MCD is also used in several highly specialized applications.

Engravers: These are very fine-pointed MCD tools used to produce precise lines and patterns, often for decorative work or marking applications.

Dressers: Unlike cutting tools, MCD dressers are not used to machine the workpiece directly. Instead, they are used to shape and sharpen conventional grinding wheels (such as those made from aluminum oxide or silicon carbide), helping maintain optimal grinding performance.

Fly Cutters: These typically consist of a simple tool holder with a single MCD cutting point extending outward. When rotated at high speed, the single cutting edge sweeps across a wide diameter, producing extremely flat and smooth surfaces. They are especially useful in optics and in applications requiring large mirror-like finishes.

Which Applications Benefit Most from MCD Precision?

Monocrystalline Diamond (MCD) tools deliver their greatest value in applications that demand extreme precision, ultra-smooth surface quality, and minimal post-processing. They are especially effective in machining specific non-ferrous metals, polymers, optical components, medical devices, and high-end consumer products.

Ultra-Precision Machining of Non-Ferrous Metals (Al, Cu, Au, etc.)

MCD performs exceptionally well when machining soft, non-ferrous metals where a flawless surface finish and tight tolerances are required. Its ultra-sharp cutting edge produces clean shearing rather than tearing, often eliminating the need for polishing.

· Aluminum alloys: Widely used for high-gloss molds, reflective surfaces, and precision aerospace or electronic components. MCD helps achieve mold-quality finishes directly from machining.

· Copper: Ideal for high-reflectivity applications such as optical mirrors and precision electrical components. MCD enables extremely smooth surfaces.

· Gold, silver, platinum: Used in jewelry and high-end electronics where precise shaping and mirror finishing are essential.

· Brass and bronze: Common in decorative parts, precision bearings, and musical instruments requiring fine surface quality.

Flawless Mirror Finishes on Polymers and Acrylics

Plastics can easily suffer from melting, stress marks, or cloudiness during machining. MCD’s sharp edge reduces heat and cuts cleanly through polymers.

· Acrylic (PMMA): Used for crystal-clear light guides, display panels, signage, and cosmetic packaging, where optical clarity is critical.

· Polycarbonate (PC): Suitable for transparent, impact-resistant parts requiring smooth optical or sealing surfaces.

· Other polymers: Applied in medical housings and precision plastic components requiring high-quality surface finishes.

Critical Role in Optical Manufacturing (Lenses and Mirrors)

Optics manufacturing requires both perfect shape accuracy and ultra-smooth surfaces to avoid light distortion.

· Diamond turning: Ultra-precision machining processes often rely on MCD tools.

· Infrared optics: Materials such as germanium (Ge), silicon (Si), and zinc selenide (ZnSe) are commonly machined using MCD.

· Metal mirrors: Aluminum and copper mirrors for telescopes, lasers, and scientific instruments depend on MCD-level surface quality.

· Optical molds: MCD is used to create highly precise molds for plastic lens production.

Medical Device Manufacturing (Implants and Contact Lenses)

Medical applications require biocompatibility, extremely smooth surfaces, and tight dimensional control.

· Contact lenses & intraocular lenses (IOLs): MCD is used for direct machining or for creating ultra-precise molds used in lens production.

· Implants: Titanium alloys and biocompatible polymers such as PEEK benefit from MCD finishing for smooth, tissue-friendly surfaces.

· Surgical components: High-precision features in surgical tools may also rely on MCD machining.

Electronics, Watchmaking, and Luxury Goods

In these industries, both appearance and precision are critical.

· Consumer electronics: Aluminum and magnesium casings for smartphones, laptops, and tablets are often finished using diamond tooling for a premium surface quality.

· Data storage components: High-precision machining is required for parts such as hard disk drive components.

· Watchmaking: Used for cases, dials, hands, and decorative elements requiring flawless finishes.

· Luxury goods: High-end pens, jewelry, and decorative items rely on MCD for engraving, shaping, and mirror-like surface finishing.

What Are the Key Benefits and Trade-offs of Using MCD Tools?

The primary benefits of using Monocrystalline Diamond (MCD) tools are the ability to achieve unrivaled surface finishes, often reaching mirror-like quality directly from the machine, which can eliminate secondary polishing or deburring steps. They also provide extreme dimensional accuracy and consistency from part to part.

However, these advantages come with clear trade-offs. MCD tools typically have a much higher initial cost compared to other tool types. They are relatively brittle and require careful handling as well as stable machining conditions to prevent chipping. In addition, their application range is limited, as they are generally unsuitable for machining ferrous materials such as steel.

Conclusion

Monocrystalline diamond tools represent the pinnacle of cutting tool technology for achieving ultra-precision and mirror-like surface finishes in specific applications. Their unique single-crystal structure enables unparalleled edge sharpness, resulting in exceptional performance on compatible non-ferrous metals and polymers.

However, MCD is not a universal solution. Its high cost, relative brittleness, and incompatibility with ferrous materials make it a specialized tool that must be used carefully and appropriately. The decision to use MCD depends on a careful evaluation of surface finish requirements, material compatibility, machining conditions, and a full assessment of total cost of ownership.

When applications demand the highest level of precision and surface quality, and the associated cost and handling requirements can be managed, MCD tools provide capabilities that other cutting tools cannot match, making them essential in demanding industries such as optics, medical device manufacturing, and high-end electronics.
