Diamond turning is an ultra-precision machining process that uses a single-crystal diamond cutting tool to produce components with highly controlled geometry and exceptionally smooth surfaces.

It is widely used for optical molds, mirrors, infrared lenses, contact lenses, Fresnel structures, precision mechanical components and other parts where conventional turning or grinding cannot provide the required surface quality.

Unlike abrasive polishing, diamond turning removes material through a controlled cutting action. When the workpiece material, machine condition and tool geometry are properly matched, the process can generate both the required part shape and the final surface in the same machining operation.

How Does the Diamond Turning Process Work?

In a typical single-point diamond turning process, the workpiece is mounted on a precision spindle and rotated at a controlled speed. A diamond tool moves across the workpiece surface while removing a thin, continuous layer of material.

The machine coordinates spindle rotation with tool movement to generate the required geometry. Depending on the machine configuration, diamond turning can produce:

· Flat and spherical surfaces

· Aspheric optical surfaces

· Concave and convex profiles

· Cylindrical components

· Fresnel structures

· V-grooves and U-grooves

· Diffractive optical structures

· Toroidal and other freeform surfaces

Rotationally symmetrical components can normally be machined through conventional ultra-precision turning. More complex, non-rotational surfaces may require slow tool servo, fast tool servo, fly-cutting or ultra-precision milling.

Why Are Single-Crystal Diamond Tools Used?

Single-crystal diamond combines a very sharp cutting edge with high hardness, wear resistance and thermal conductivity. These properties allow the tool to remove extremely small amounts of material while maintaining a stable cutting profile.

A properly manufactured diamond turning tool can provide:

· A highly polished and defect-controlled cutting edge

· Accurate nose radius and included angle

· Stable cutting geometry during precision machining

· Reduced friction and material adhesion

· Consistent surface generation over repeated cuts

· Better control of microstructures and optical profiles

Tool quality is particularly important because small defects, chips or waviness along the cutting edge can be transferred directly to the workpiece surface.

How Is Surface Finish Generated in Diamond Turning?

The finished surface contains microscopic tool marks created by the movement of the cutting edge across the rotating workpiece. Their size and spacing are influenced primarily by tool nose radius and feed per revolution.

The theoretical peak-to-valley roughness can be approximated by:

PV ≈ f² /（8R）

This relationship shows why reducing feed generally improves the theoretical surface finish. However, a very small feed also increases machining time and total cutting distance, which may accelerate tool wear and increase the influence of temperature drift.

Actual surface quality is affected by more than the theoretical tool path. Important factors include:

· Diamond edge sharpness and waviness

· Tool nose radius

· Feed rate

· Depth of cut

· Cutting speed

· Rake and clearance angles

· Workpiece material and grain structure

· Machine vibration

· Spindle accuracy

· Thermal stability

· Chip evacuation

· Tool setting and alignment

For this reason, the lowest feed rate does not automatically produce the best result. The machining parameters must be balanced for the material, component geometry and required surface specification.

Form Accuracy and Surface Roughness Are Different

Form accuracy describes how closely the machined component matches its intended overall geometry. Surface roughness describes the microscopic texture remaining on the machined surface.

A component may have good dimensional accuracy but still show unacceptable tool marks. Conversely, it may have a smooth local surface but fail to meet the required optical form.

Successful ultra-precision machining therefore requires separate control and inspection of:

· Part dimensions

· Profile or form error

· Surface roughness

· Edge condition

· Waviness

· Optical performance

The tool geometry, machine motion, environmental stability and workpiece preparation all influence these results.

Materials and Form Factors

Diamond turning is primarily used for machining non-ferrous materials, including aluminum 6061, brass, copper, and electroless or electrolytic coatings such as high-phosphorus copper or nickel coatings. These electroformed materials are widely preferred due to their high hardness, extremely fine grain structure, and low impurity levels. When combined with suitable lubrication, diamond tools can maintain exceptional sharpness over long cutting distances, enabling the production of optical surfaces with areas exceeding one square meter.

In contrast, ferrous materials such as steel are generally unsuitable for diamond turning because they cause rapid tool wear and significantly reduce tool life.

As a lathe-based machining process, diamond turning is naturally optimized for rotationally symmetric components, including cylindrical, spherical, and parabolic optical surfaces. However, advanced technologies such as a Fast Tool Servo (FTS) enable the tool to move precisely in and out while synchronized with spindle rotation, making it possible to manufacture non-rotationally symmetric or freeform optics. Additionally, positioning the workpiece off-center on the spindle allows the creation of asymmetric conic surfaces. Both rotationally symmetric and freeform diamond-turned components can be produced with high precision for advanced optical applications.

What Parts Can Be Produced by Diamond Turning?

Diamond turning is used in industries that require accurate optical or mechanical surfaces. Typical components include:

· Metal mirrors and reflectors

· Infrared lenses

· Aspheric and spherical optics

· Contact lenses and intraocular lenses

· Camera lens molds

· Automotive lighting molds

· Fresnel lens molds

· Laser and sensor components

· Micro-optical arrays

· Precision rollers and drums

· Diffractive optical elements

· Microgrooves and precision channels

For high-volume optical production, diamond turning is also used to manufacture precision mold inserts. The finished inserts can then be used in injection molding or precision glass molding, reducing the need to machine every optical component individually.

Is Polishing Required After Diamond Turning?

Diamond turning can produce a reflective surface directly from the cutting process, so it may reduce or eliminate conventional polishing for suitable materials and applications.

However, post-polishing may still be required when:

· Residual tool marks affect optical performance

· The specified roughness is beyond the capability of the selected process

· The material produces subsurface damage

· Short-wavelength optical applications require a finer finish

· Coating performance depends on additional surface preparation

Whether polishing is necessary should therefore be determined by the functional requirements of the finished component rather than appearance alone.

Choosing Diamond Tools for Ultra-Precision Machining

Diamond turning performance depends on the complete machining system. Tool-edge quality, tool geometry, workpiece material, machine stability, thermal control and process parameters must work together.

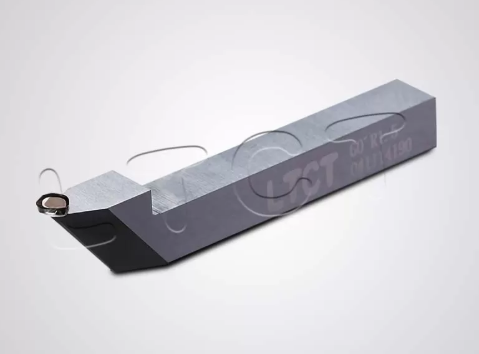

LTCT manufactures ultra-precision diamond tools for optical components, precision molds, microstructures and other demanding machining applications. Available solutions include single-crystal diamond turning tools, grooving and boring tools, diamond milling tools and ultrasonic-assisted diamond tools.
