SCD (Single Crystal Diamond) Turning Tools: What Makes Them Ideal for Your Application and How Do You Choose the Best One?

In the world of ultra-precision machining, achieving nanometer-level surface finishes and sub-micron dimensional accuracy is no longer limited to laboratory environments. Industries such as optics, aerospace, semiconductor manufacturing, medical devices, automotive lighting, and advanced electronics increasingly rely on ultra-precision cutting technologies to produce components with exceptional surface integrity and geometric accuracy. Among the many advanced cutting technologies available today, SCD (Single Crystal Diamond) turning tools stand out as one of the most effective solutions for ultra-precision machining applications.

Single Crystal Diamond turning tools are widely recognized for their unmatched hardness, extreme sharpness, superior wear resistance, and ability to generate mirror-quality surfaces directly from the machining process without secondary polishing. These tools are especially valuable in high-end manufacturing environments where even microscopic defects can negatively impact optical performance, product reliability, or dimensional consistency.

Understanding why SCD turning tools are so effective and how to select the right tool for your specific machining conditions is critical for maximizing machining efficiency, improving product quality, and reducing overall production costs.

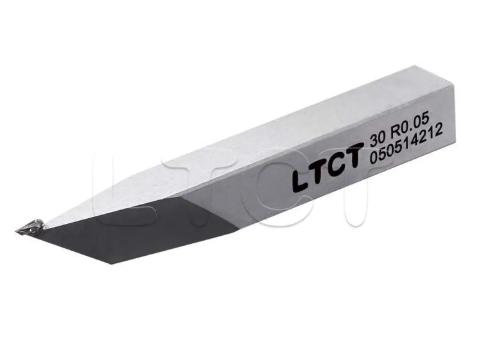

What Are SCD Turning Tools?

SCD turning tools are ultra-precision cutting tools manufactured from a single crystal diamond material. Unlike polycrystalline diamond (PCD), which contains multiple diamond grains bonded together, SCD tools are made from a continuous single-crystal structure. This allows the cutting edge to achieve an extremely sharp and uniform geometry with virtually no grain boundaries.

Because diamond is the hardest known material, SCD tools can maintain exceptional edge sharpness during ultra-precision cutting operations. Their extremely low friction coefficient and high thermal conductivity also contribute to improved cutting stability and reduced heat generation during machining.

Single-point diamond turning (SPDT) technology commonly utilizes SCD tools for generating optical-grade surfaces on non-ferrous metals, optical polymers, infrared materials, and other advanced materials requiring ultra-smooth finishes.

Why SCD Turning Tools Are Ideal for Ultra-Precision Applications

Exceptional Surface Finish Quality

One of the biggest advantages of SCD turning tools is their ability to produce mirror-like surface finishes directly from machining. Surface roughness can reach nanometer-level values, making these tools ideal for optical and semiconductor applications.

Traditional carbide or ceramic tools often leave microscopic tool marks or surface defects that require secondary polishing. In contrast, SCD tools can achieve optical-grade finishes in a single machining step, significantly reducing post-processing time and manufacturing costs.

This capability is especially important for:

· Optical lenses

· Infrared optics

· Reflective mirrors

· LED reflectors

· Optical mold inserts

· Precision camera components

In many cases, eliminating polishing also helps preserve geometric accuracy and freeform surface integrity.

Ultra-High Edge Sharpness

SCD tools feature extremely sharp cutting edges that are difficult to achieve with other tool materials. Because the diamond consists of a single crystal structure, the edge can be polished to an atomic-level sharpness with minimal edge defects.

This sharpness enables:

· Reduced cutting forces

· Lower material deformation

· Better chip control

· Minimal burr formation

· Improved dimensional accuracy

For micro-machining and nano-scale cutting operations, cutting edge quality directly affects machining stability and final surface performance. SCD tools are therefore commonly used for high-precision freeform optics and micro-structured surfaces.

Outstanding Wear Resistance

Diamond is significantly harder than carbide, ceramic, or cubic boron nitride tools. This allows SCD turning tools to maintain cutting edge geometry for extended machining cycles when cutting suitable materials.

The superior wear resistance offers several important advantages:

· Longer tool life

· Better process consistency

· Reduced tool replacement frequency

· Lower production downtime

· Stable surface quality during long production runs

In ultra-precision manufacturing, even minor tool wear can cause measurable changes in surface roughness or form accuracy. SCD tools help maintain long-term machining consistency, which is critical for optical and semiconductor components.

Low Friction and Reduced Heat Generation

Single crystal diamond has an extremely low coefficient of friction. During cutting operations, this minimizes adhesion between the tool and workpiece material, reducing built-up edge formation and improving chip evacuation.

In addition, diamond’s high thermal conductivity efficiently dissipates cutting heat away from the cutting zone. This reduces thermal distortion in both the workpiece and the tool itself.

The result includes:

· Improved dimensional stability

· Lower thermal expansion errors

· Reduced surface damage

· Better machining repeatability

These advantages become especially important in ultra-precision optical machining where thermal instability can negatively affect nanometer-level tolerances.

Ideal Materials for SCD Turning Tools

SCD turning tools are best suited for non-ferrous metals and brittle materials. Commonly machined materials include:

· Aluminum alloys

· Copper

· Brass

· Nickel-phosphorus plated materials

· Optical plastics

· Acrylic (PMMA)

· Silicon

· Germanium

· Infrared crystals

· Chalcogenide glass

· ZnSe

· CaF2

· Semiconductor materials

Many optical mold inserts and precision reflective components are produced using these materials.

However, SCD tools are generally not recommended for ferrous materials because carbon diffusion at high cutting temperatures can rapidly accelerate diamond wear.

Key Industries Using SCD Turning Tools

Optical Manufacturing

The optics industry is one of the largest users of SCD turning tools. Single-point diamond turning enables direct machining of aspheric, spherical, and freeform optical surfaces with exceptional accuracy.

Applications include:

· Camera lenses

· Infrared optics

· Laser optics

· Telescope mirrors

· Projection optics

· Automotive lighting systems

Semiconductor Industry

Semiconductor manufacturing requires ultra-precision surfaces and extremely tight tolerances. SCD tools are widely used for wafer processing, optical inspection components, and semiconductor equipment parts.

The ability to machine brittle and delicate materials with minimal subsurface damage makes SCD tools highly valuable in semiconductor environments.

Aerospace and Defense

Aerospace systems often require high-performance optical and reflective components with superior surface quality and dimensional precision.

Diamond turning technologies are commonly used for:

· Infrared imaging systems

· Satellite optics

· Precision mirrors

· Defense-grade optical assemblies

Medical Device Manufacturing

Medical applications increasingly rely on micro-scale precision machining for advanced imaging systems and precision medical components. SCD turning tools enable highly accurate production of miniature optical and precision parts.

How to Choose the Best SCD Turning Tool

Selecting the correct SCD turning tool requires evaluating multiple factors related to workpiece material, machining requirements, machine capability, and desired surface quality.

Analyze the Workpiece Material

Material compatibility is the first consideration when choosing an SCD tool. Different materials require different cutting edge geometries, rake angles, and nose radii.

For example:

· Soft non-ferrous metals may benefit from highly positive rake angles

· Brittle optical materials may require optimized edge preparation

· Optical polymers often require ultra-sharp edges to avoid smearing

Understanding material hardness, brittleness, thermal properties, and machinability is essential for selecting the correct tool configuration.

Consider Surface Finish Requirements

The required surface finish directly influences tool geometry selection.

For optical-grade surfaces, smaller feed rates and optimized nose radii are often necessary. Ultra-fine edge polishing and defect-free cutting edges become increasingly important when targeting nanometer-level roughness values.

Applications requiring mirror finishes or freeform optical surfaces usually demand higher-grade SCD tools with extremely precise edge control.

Evaluate Tool Nose Radius

The nose radius significantly affects surface finish, cutting stability, and achievable geometry.

Common considerations include:

· Smaller nose radii for micro-features and fine details

· Larger radii for smoother finishes and better cutting stability

· Application-specific radii for freeform optics or mold inserts

Selecting the proper nose radius requires balancing surface finish quality with machining efficiency and feature geometry.

Choose the Correct Rake Angle

Rake angle plays a major role in chip formation and cutting force behavior.

Positive rake angles generally provide:

· Lower cutting forces

· Improved surface finish

· Better chip flow

However, excessively positive rake angles may weaken the cutting edge in some applications.

Different workpiece materials often require customized rake angle optimization to achieve the best performance.

Tool Edge Quality and Polishing

In ultra-precision machining, cutting edge quality is extremely important. Even microscopic edge defects can negatively impact surface quality.

High-quality SCD tools feature:

· Ultra-fine edge polishing

· Minimal edge chipping

· Controlled crystal orientation

· Precise edge geometry consistency

Premium SCD tools are often manufactured using advanced polishing technologies to ensure defect-free cutting performance.

Machine Tool Compatibility

Even the best SCD tool cannot deliver optimal results without a suitable ultra-precision machining platform.

Important machine considerations include:

· Air-bearing spindle quality

· Vibration control

· Thermal stability

· Nano-scale positioning accuracy

· Environmental temperature control

Ultra-precision machining systems are designed to minimize vibration and thermal drift, allowing SCD tools to achieve their full performance potential.

Tool Life vs Production Efficiency

Different applications prioritize different performance objectives.

For prototype optical components, maximum surface quality may be the highest priority. For large-scale production environments, balancing tool life and productivity becomes more important.

Optimizing cutting parameters such as:

· Cutting speed

· Feed rate

· Depth of cut

· Coolant strategy

can significantly influence both tool longevity and machining efficiency.

Future Trends in SCD Turning Technology

As ultra-precision manufacturing continues to evolve, SCD turning technology is advancing rapidly. Emerging developments include:

· Fast tool servo systems

· Nano-fast tool servo technology

· Hybrid ultra-precision machining

· AI-assisted process optimization

· Advanced freeform optics manufacturing

· Multi-axis ultra-precision machining

Researchers are also exploring hybrid machining methods to improve diamond turning performance on difficult-to-machine materials.

The growing demand for advanced optical systems, AR/VR devices, semiconductor components, and high-performance electronics will continue driving innovation in SCD tooling technology.

Conclusion

SCD turning tools represent one of the highest levels of precision cutting technology available in modern manufacturing. Their unmatched hardness, ultra-sharp cutting edges, superior wear resistance, and ability to generate optical-grade surfaces make them indispensable for ultra-precision machining applications.

From optics and semiconductors to aerospace and medical manufacturing, SCD tools enable manufacturers to achieve surface finishes and dimensional tolerances that would be impossible using conventional cutting technologies.

Choosing the right SCD turning tool requires careful evaluation of workpiece material, surface finish requirements, tool geometry, machine capability, and production objectives. By selecting the proper tool configuration and optimizing machining parameters, manufacturers can achieve exceptional machining performance, extended tool life, and superior product quality.
