Aerospace optical systems often contain mirrors, infrared lenses, beam-steering components, and other precision surfaces that must maintain their optical performance under vibration, temperature changes, and demanding operating conditions. Many of these components also use aspheric, off-axis, or freeform geometries that are difficult to manufacture through conventional grinding and polishing alone.

Precision diamond turning provides a deterministic method for producing these complex optical surfaces. By using a single-crystal diamond tool on an ultra-precision machine, the process can generate the required optical form while achieving a highly controlled surface finish.

What Is Precision Diamond Turning?

Precision diamond turning, also known as single-point diamond turning or SPDT, is an ultra-precision machining process in which a single-crystal diamond cutting edge removes material from a rotating workpiece.

Unlike conventional turning, the objective is not simply to achieve dimensional accuracy. The process must simultaneously control:

· Optical surface form

· Surface roughness

· Mid-spatial-frequency errors

· Subsurface damage

· Edge quality

· Dimensional stability

The workpiece is mounted on an ultra-precision spindle, while the diamond tool follows a computer-controlled path. Depending on the machine configuration, the process can produce spherical, aspheric, toroidal, diffractive, and certain freeform optical surfaces.

NIST notes that diamond turning can generate difficult optical shapes, machine soft ductile materials that are challenging to polish, and produce usable surfaces close to the edge of an optical element.

Why Diamond Turning Is Used for Aerospace Optics

Aerospace optical components frequently combine complex geometry with strict weight and stability requirements. Diamond turning is particularly useful because it can integrate optical and mechanical features into a single component.

For example, an aluminum mirror may include the optical surface, mounting interface, alignment reference, and lightweight supporting structure in one substrate. Manufacturing these features from the same material can reduce assembly complexity and help maintain alignment during temperature changes.

Typical aerospace applications include:

· Infrared imaging mirrors

· Cryogenic spectrometer optics

· Telescope mirror segments

· Off-axis aspheric mirrors

· Beam-steering mirrors

· Lidar optical components

· Reflective relay optics

· Diffractive and Fresnel structures

The process is especially valuable for infrared systems, where suitable metallic and crystalline materials can often be diamond machined directly. NASA has documented diamond-machined aluminum mirrors in near-infrared spectrometers and other cryogenic optical instruments.

Materials Used in Diamond-Turned Aerospace Optics

Material selection must be considered during the optical design stage rather than after the component geometry has been finalized. Different materials respond differently to a diamond cutting edge, and not every optical material can be machined under the same conditions.

Aluminum Alloys

Aluminum alloys are widely used for aerospace mirrors because they offer low density, good machinability, and the possibility of producing both the optical surface and structural features from one material.

Common applications include infrared mirrors, telescope components, spectrometer optics, and lightweight reflective assemblies. However, inclusions, grain structure, and residual stress in the alloy can affect surface finish and long-term form stability.

When an aluminum mirror will operate at cryogenic temperatures, stress relief and thermal cycling become particularly important. NASA testing on 6061-T651 aluminum mirrors showed that residual stress could change the mirror figure after cooling, even when the initial diamond-turned surface met its room-temperature requirements.

Electroless Nickel-Plated Surfaces

Electroless nickel-phosphorus coatings may be applied to aluminum substrates when a harder and more uniform optical surface is required. The coating can be diamond turned and, when necessary, post-polished to reduce residual tool marks.

The phosphorus content, coating thickness, hardness, and internal stress must be controlled. A non-uniform coating can introduce local cutting differences or distort after material removal.

Copper and Other Non-Ferrous Metals

Copper and selected copper alloys can be diamond turned for reflective optical components, thermal imaging systems, and high-energy beam applications. Their high thermal conductivity can be useful when an optical component must manage localized heat.

Material purity and microstructure remain important because inclusions or hard particles may damage the cutting edge or leave defects on the finished surface.

Infrared Optical Materials

Germanium, silicon, zinc selenide, zinc sulfide, and calcium fluoride are used in infrared optical systems. Some of these materials can be machined in a ductile mode when the cutting depth and tool geometry are carefully controlled.

Because they are normally brittle, excessive cutting forces may cause microfracture, edge chipping, or subsurface damage. Tool condition, machine stability, material orientation, and depth of cut therefore require close control. For difficult optical glasses and crystalline materials, ultrasonic-assisted machining may also be evaluated.

NASA guidance recognizes precision diamond turning as a suitable process for complex aerospace lenses, while noting that it requires more sophisticated equipment than conventional grinding and polishing.

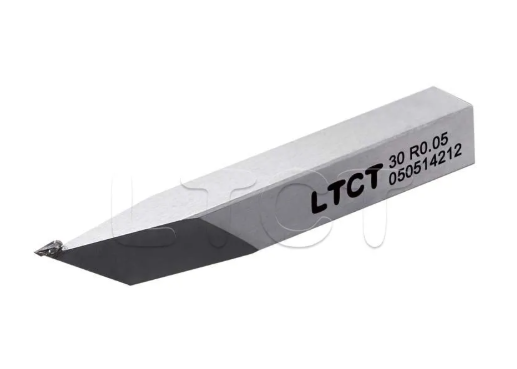

The Role of the Diamond Turning Tool

The final optical surface is directly influenced by the geometry and condition of the cutting edge. Selecting an appropriate tool involves more than choosing a standard nose radius.

Important tool characteristics include:

· Nose radius and radius accuracy

· Cutting-edge waviness

· Rake angle

· Clearance angle

· Included angle

· Diamond crystal orientation

· Edge sharpness

· Shank stiffness and mounting accuracy

A larger tool nose radius can support smooth continuous cutting, but it also changes the relationship between feed rate and theoretical surface texture. A smaller radius may be required for steep local curvature, narrow features, or complex microstructures.

The rake angle must suit the workpiece material and cutting mechanism. A geometry that works well on aluminum may not provide the same results on germanium or calcium fluoride. Insufficient clearance can cause rubbing, while an unstable or damaged edge can generate grooves, tearing, or local fractures.

For this reason, ultra-precision diamond tools should be selected according to the workpiece material, optical geometry, machine configuration, depth of cut, and required surface quality.

Key Diamond Turning Process Parameters

Depth of Cut

Depth of cut affects cutting force, material deformation, and the risk of fracture. Roughing passes may remove larger amounts of material, while finishing passes generally use much smaller depths to control surface generation.

For brittle optical materials, the process must remain within a ductile cutting regime wherever possible. If the undeformed chip thickness exceeds the material’s critical limit, brittle fracture may replace controlled plastic removal.

Feed Rate

Feed rate influences the spacing of the spiral tool marks left on the surface. Increasing the feed can improve productivity, but it may also increase the theoretical surface roughness and make the turning pattern more visible.

The selected feed must be evaluated together with tool radius, spindle speed, material behavior, and optical wavelength.

Spindle Speed

Spindle speed affects cutting velocity, thermal generation, vibration response, and machining time. Excessive speed can introduce heat or dynamic instability, while insufficient speed may reduce process efficiency or create inconsistent cutting conditions.

Tool Alignment

Tool height and angular alignment are especially important when producing aspheric or steep optical surfaces. A tool set above or below the spindle centerline can introduce form errors that may not be apparent from surface roughness measurements alone.

Accurate setup should therefore be supported by tool-setting procedures, machine calibration, and final optical metrology.

Conclusion

Precision diamond turning is well suited to aerospace optical components that combine complex geometry, lightweight construction, and demanding dimensional control. Its effectiveness depends on the interaction between the diamond tool, workpiece material, machine motion, fixturing, environment, and metrology.

The process is particularly useful for aluminum mirrors, non-ferrous reflective components, and selected infrared optical materials. However, an acceptable machined surface cannot be defined by roughness alone. Form accuracy, periodic tool marks, subsurface damage, thermal stability, and performance at the operating wavelength must all be considered.

When these requirements are incorporated early in the design and manufacturing plan, diamond turning can provide a repeatable route to producing advanced mirrors, infrared lenses, and other complex optical surfaces for aerospace systems.
