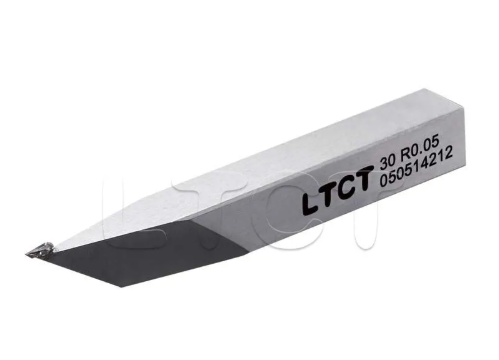

Single crystal diamond tools are widely used in ultra-precision machining, optical component manufacturing, mirror finishing, and other applications that require extremely smooth surfaces and tight dimensional accuracy. Because diamond has exceptional hardness and wear resistance, these tools can provide excellent cutting performance. However, single crystal diamond is also relatively brittle, and its extremely sharp cutting edge can be easily chipped by impact, vibration, improper handling, or incorrect tool setting.

Proper maintenance and operating practices are therefore essential for maintaining machining accuracy and extending tool life.

1. Maintain Stable Cutting Conditions

Single crystal diamond tools should be used under smooth, stable, and low-vibration machining conditions. The rigidity of the machine tool, workpiece, fixture, and tool holder should be as high as possible to reduce vibration during cutting.

Excessive cutting depth should also be avoided. For precision machining, the cutting depth should generally be controlled within 0.1 mm, depending on the workpiece material, tool geometry, and surface-finish requirements.

Cutting speed is another important factor. A suitable higher cutting speed can help reduce cutting forces, while an excessively low cutting speed may increase cutting resistance and accelerate cutting-edge wear or failure. Cutting parameters should therefore be selected according to the material and required machining accuracy.

2. Avoid Direct Contact with the Cutting Edge

Never allow the diamond cutting edge to contact the workpiece or other hard objects when the spindle or workpiece is stationary. Even slight impact may produce microscopic chips that significantly affect the final surface finish.

Operators should also avoid touching the cutting edge directly with fingers or fingernails. Small particles of dust, sand, or other hard contaminants can become trapped on the skin and scratch or damage the diamond edge.

For inspection and tool adjustment, non-contact measurement methods are recommended whenever possible. Optical microscopes and other precision optical instruments can be used to inspect the cutting edge without introducing unnecessary mechanical contact.

3. Clean and Store Diamond Tools Properly

Contamination on the cutting edge may reduce machining quality and increase the possibility of scratches on the workpiece.

Precision diamond tools should be cleaned carefully with absorbent cotton or a lint-free material using alcohol or acetone. Excessive force should never be applied during cleaning.

When the tool is not in use, the cutting edge should be protected with a rubber or plastic cover. Each diamond tool should preferably be stored separately in a dedicated tool box or protective case to prevent accidental collision with other tools.

The storage environment should also be kept clean and dry.

4. Ensure Accurate Tool Alignment for Mirror Cutting

For mirror machining with a straight finishing-edge diamond tool, accurate tool alignment is particularly important. Even a very small angular error between the polishing edge and the feed direction can affect surface roughness.

During tool installation, an angular deviation of up to approximately one degree may occur. Therefore, careful adjustment should be performed before final machining.

A common alignment method is to first machine a small test surface on the workpiece. The tool can then be observed using a 10× to 30× microscope, and the finishing edge adjusted until it is parallel to its reflected image on the newly machined surface.

Because extremely high parallelism may be required, several fine adjustments may be necessary. Operators should also pay attention when tightening the tool-holder clamping screws, as even slight tool rotation can change the alignment.

5. Consider Arc-Edge Diamond Tools for Suitable Applications

Setting a straight finishing-edge diamond tool for mirror machining can require considerable time and skill. For applications with less demanding accuracy requirements, an arc-edge diamond tool with a radius of approximately 10–30 mm may provide a more convenient alternative.

Arc-edge tools simplify the alignment process and can also improve tool utilization. When one section of the cutting arc becomes worn, the tool can often be rotated slightly so that an unused section of the edge performs the cutting.

This can extend the effective service life of the tool.

High-precision single crystal diamond arc tools are also particularly useful for machining concave mirrors and other precision curved optical surfaces.

Conclusion

The service life and machining performance of a single crystal diamond tool depend not only on the quality of the diamond itself, but also on correct cutting parameters, machine rigidity, careful handling, proper cleaning, accurate alignment, and protected storage.

By preventing vibration and impact, avoiding direct contact with the cutting edge, maintaining appropriate cutting conditions, and following proper inspection and storage procedures, manufacturers can reduce premature edge damage and maintain consistent surface quality in ultra-precision machining applications.
