Stainless steel is widely used for precision molds, medical components, aerospace parts and scientific instruments because of its strength, corrosion resistance and dimensional stability. However, producing an optical-quality surface directly on stainless steel remains difficult.

Conventional single-point diamond turning works exceptionally well on non-ferrous metals and optical materials, but diamond turning stainless steel creates a serious tool-wear problem. Ultrasonic-assisted diamond turning addresses this limitation by combining an ultra-sharp diamond cutting edge with controlled high-frequency vibration.

The result is an intermittent cutting process that reduces continuous tool–workpiece contact, suppresses rapid diamond wear and makes the ultra-precision machining of stainless steel technically achievable.

Why Is Conventional Diamond Turning of Stainless Steel Difficult?

Single-crystal diamond tools provide extremely sharp and accurately controlled cutting edges. They can remove very thin layers of material while producing low surface roughness and precise form accuracy.

The difficulty arises from the interaction between diamond and iron-based materials.

Under conventional continuous cutting conditions, the high pressure and temperature at the cutting interface can promote chemical reactions between the carbon in the diamond tool and the iron in stainless steel. These reactions may involve carbon diffusion, catalytic graphitization and carbide formation. As a result, the diamond edge can deteriorate rapidly.

Once the cutting edge becomes worn or rounded, several problems appear:

· Surface roughness increases.

· Cutting forces become less stable.

· Form accuracy deteriorates.

· Burrs, grooves or irregular tool marks may develop.

· Tool replacement and recalibration become more frequent.

Therefore, ordinary diamond turning stainless steel is generally unsuitable for long, stable ultra-precision machining operations.

What Is Ultrasonic-Assisted Diamond Turning?

Ultrasonic-assisted diamond turning integrates an ultrasonic vibration system with an ultra-precision lathe and a precision diamond tool.

During machining, the tool vibrates at an ultrasonic frequency with a very small, controlled amplitude. The vibration may be applied in the cutting direction, the depth-of-cut direction or along an elliptical path.

When the instantaneous vibration velocity exceeds the nominal cutting speed during part of each vibration cycle, the diamond edge periodically separates from the workpiece. Instead of remaining continuously engaged, the tool performs a rapid series of microscopic cutting actions.

This high-frequency intermittent motion is the fundamental difference between conventional turning and ultrasonic-assisted diamond turning.

How Does Ultrasonic Vibration Protect the Diamond Tool?

1. Periodic Tool–Workpiece Separation

The diamond edge is not continuously exposed to the stainless steel. The shorter contact duration during each cycle reduces sustained friction and limits the time available for damaging chemical interactions.

2. Reduced Average Cutting Force

The tool removes material in extremely small increments. This can lower average cutting and thrust forces, reducing elastic deformation of the workpiece and stress on the cutting edge.

Lower forces are especially valuable when machining thin walls, microfeatures or precision components that can deform easily.

3. Improved Chip Evacuation

Periodic separation creates space between the tool, chip and workpiece. This helps chips move away from the cutting zone and reduces material adhesion to the rake face.

Improved chip control also decreases the risk of chips scratching the newly machined surface.

4. Better Access for Lubrication or Shielding Gas

The intermittent interface can allow cutting fluid, lubricant or shielding gas to reach the cutting zone more effectively. Depending on the process, this may further reduce adhesion and unwanted chemical reactions.

Tool-wear suppression should not be attributed to temperature reduction alone. The altered contact conditions, shorter interaction time and changes at the tool–chip interface are also important.

How Is an Ultra-Precision Stainless Steel Surface Produced?

A typical process involves the following stages:

1. Workpiece preparation: The stainless steel component is pre-machined to remove excess material and establish a stable datum.

2. Tool selection: A single-crystal diamond tool is selected according to the required profile, tool nose radius, clearance angle and surface finish.

3. Ultrasonic system setup: The tool is mounted on a compatible ultrasonic actuator, and the vibration frequency and amplitude are tuned.

4. Precision alignment: Tool height, cutting direction and workpiece runout are carefully controlled.

5. Parameter optimization: Cutting speed, feed rate, depth of cut and vibration conditions are adjusted to maintain effective intermittent cutting.

6. Finishing passes: Small depths of cut and controlled feed rates are used to generate the final surface.

7. Surface verification: Roughness, waviness and form accuracy are measured using profilometry, interferometry or other precision metrology equipment.

Early experimental research demonstrated stainless steel diamond turning using a single-crystal diamond tool vibrating at approximately 40 kHz, achieving a reported surface roughness below 0.03 μm Rmax under controlled conditions. Actual results, however, depend on the stainless steel grade, machine stability, tool geometry and machining parameters.

Key Parameters Affecting Machining Performance

Successful ultrasonic-assisted diamond turning requires more than simply adding vibration to a conventional lathe. Important parameters include:

· Ultrasonic frequency and amplitude

· Cutting speed relative to vibration velocity

· Tool vibration direction and trajectory

· Diamond crystal orientation

· Tool nose radius and edge quality

· Feed rate and depth of cut

· Stainless steel grade and hardness

· Coolant, lubricant or shielding conditions

· Machine stiffness and thermal stability

· Workpiece geometry and clamping method

If the cutting speed is too high or the vibration amplitude is too low, effective tool separation may not occur. Excessive amplitude can also affect surface generation or accelerate edge damage. Process parameters must therefore be matched to the specific machine, tool and workpiece.

Benefits for Precision Manufacturing

When properly configured, ultrasonic-assisted diamond turning can provide:

· Direct machining of selected stainless steels

· Nanometer-scale surface roughness

· Improved form accuracy

· Reduced diamond tool wear

· Lower and more stable cutting forces

· Less material adhesion

· Better surface integrity

· Reduced dependence on manual polishing

· Greater control over microstructures and complex profiles

Removing or shortening secondary polishing is particularly valuable for optical molds. Polishing can alter edge geometry, reduce microfeature accuracy and introduce local form errors.

Typical Applications

The technology is suitable for demanding stainless steel components such as:

· Optical mold inserts

· Precision dies and tooling

· Mirror-finished functional surfaces

· Microstructured stainless steel components

· Medical and analytical instrument parts

· High-precision aerospace components

· Scientific and metrology equipment

However, not every stainless steel grade responds identically. Feasibility testing is recommended before production, particularly when the project requires extremely low roughness or strict submicron form accuracy.

Selecting a Diamond Tool for Stainless Steel Machining

The tool should be evaluated as part of the complete ultrasonic machining system. Buyers should provide the tool manufacturer with the stainless steel grade, hardness, component geometry, target roughness, required form accuracy, machine model, vibration frequency and tool-holder interface.

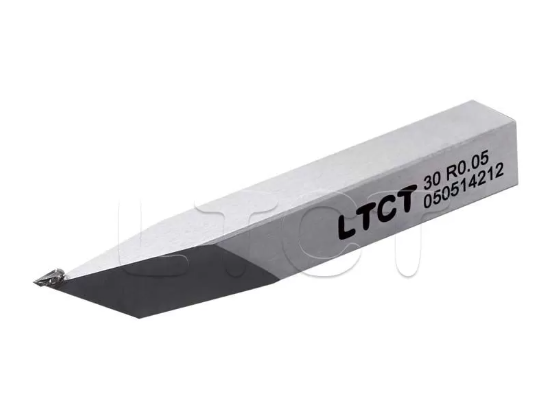

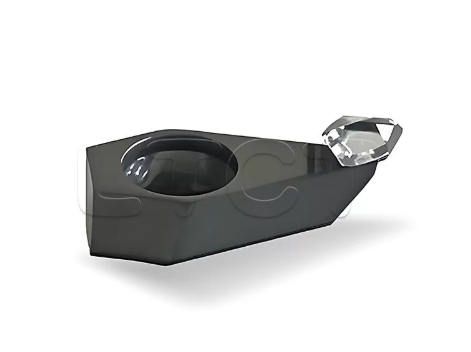

LTCT supplies ultrasonic-assisted diamond tools with application-specific cutting profiles, nose radii and mounting configurations. Other ultra-precision diamond tools are available for optical materials, non-ferrous metals, precision molds and microstructured components.

Conclusion

Ultrasonic-assisted diamond turning makes the ultra-precision machining of stainless steel possible by transforming continuous cutting into high-frequency intermittent cutting. Periodic tool separation changes the contact conditions, reduces average forces, improves chip evacuation and helps suppress rapid diamond tool wear.

For manufacturers pursuing optical-quality stainless steel surfaces, the technology can reduce polishing requirements and improve dimensional control. Its success depends on matching the diamond tool, ultrasonic system and cutting parameters to the exact material and component.

Contact LTCT with your stainless steel grade, drawing, machine specifications and surface requirements to evaluate a suitable ultrasonic-assisted diamond tool.
