Ultrasonic-assisted diamond machining and conventional diamond turning can both produce highly accurate components. However, their performance differs significantly when machining stainless steel, hardened steel, tungsten carbide, optical crystals, and other difficult-to-machine materials.

The key difference is tool–workpiece contact. Conventional diamond turning uses continuous cutting, while ultrasonic-assisted turning adds high-frequency, micron-scale vibration to the diamond tool or workpiece. Under the correct conditions, this vibration creates periodic separation between the cutting edge and the material.

This intermittent cutting action can reduce average cutting force, limit heat accumulation, suppress diamond tool wear, and produce a more consistent ultra-precision surface finish.

What Is Conventional Diamond Turning?

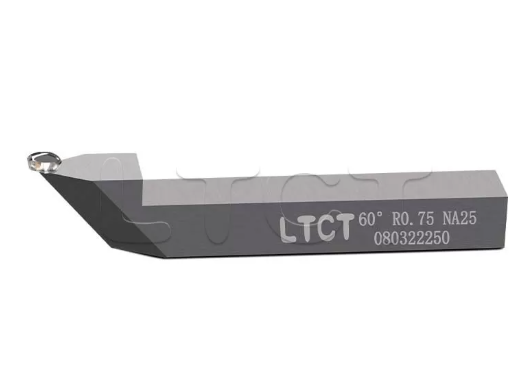

Conventional diamond turning is a single-point machining process that uses a natural or synthetic single-crystal diamond tool. The tool remains in continuous contact with the rotating workpiece.

It is widely used for machining:

· Aluminum and copper alloys

· Electroless nickel coatings

· Infrared optical materials

· Polymer optics

· Mirrors, lenses, and precision molds

For compatible non-ferrous materials, conventional diamond turning provides excellent dimensional accuracy and nanometer-level roughness without adding a vibration system.

Its main limitation appears when machining ferrous metals. Iron can promote thermochemical reactions with carbon in the diamond tool, causing rapid cutting-edge degradation. Conventional diamond turning of stainless steel or hardened steel may therefore produce increasing roughness, dimensional errors, and short diamond tool life.

What Is Ultrasonic-Assisted Diamond Machining?

Ultrasonic-assisted diamond machining superimposes ultrasonic vibration—normally at a frequency above 20 kHz—onto the cutting motion. Depending on the system, vibration may be applied in the cutting direction, feed direction, depth-of-cut direction, or as an elliptical tool path.

When vibration speed exceeds the relative cutting speed during part of each cycle, the tool periodically separates from the workpiece. This changes continuous cutting into high-frequency intermittent cutting.

A landmark stainless-steel experiment applied 40 kHz vibration to a single-crystal diamond tool and achieved surface roughness below 0.03 μm Rmax, demonstrating that ultrasonic assistance could make ultra-precision diamond turning of stainless steel practical.

Ultrasonic-Assisted vs. Conventional Diamond Turning

Which Process Produces a Better Surface Finish?

For aluminum, copper, and other diamond-compatible materials, conventional diamond turning may already deliver the required optical finish. Adding ultrasonic vibration does not automatically improve every surface.

The advantage becomes more apparent on materials that generate high forces, brittle fracture, built-up edge, or accelerated diamond wear. Periodic separation reduces plowing and friction, while the smaller instantaneous undeformed chip thickness can encourage ductile-mode material removal.

Ultrasonically assisted single-point diamond turning has produced nanoscale roughness on tungsten-carbide optical molds without the defects commonly associated with ground surfaces.

However, ultrasonic vibration also creates a controlled surface texture. Incorrect amplitude, feed, tool radius, or phase alignment may leave visible vibration marks. The best ultra-precision surface finish therefore depends on matching the vibration trajectory with the feed rate and spindle speed.

How Does Ultrasonic Assistance Affect Cutting Force?

In conventional diamond turning, the cutting edge continuously shears and compresses the workpiece. Hard or work-hardening materials can create high tangential and thrust forces, increasing tool deflection, heat, chatter, and subsurface damage.

Ultrasonic assistance can reduce the time-averaged cutting force through:

· Periodic tool–workpiece separation

· Lower friction at the rake and flank faces

· Shorter chip–tool contact length

· Reduced instantaneous chip thickness

· Easier chip evacuation

Lower forces help protect the diamond edge and reduce elastic deformation of thin-walled or delicate components.

The benefit is conditional. Research on cutting-speed-direction ultrasonic turning shows that intermittent cutting occurs only when cutting speed or feed remains below a critical value determined by the vibration parameters. Above that limit, contact may become continuous and the force-reduction advantage can decrease.

Which Process Offers Longer Diamond Tool Life?

On non-ferrous materials, conventional diamond turning can provide long, predictable tool life. Its simpler tool path also makes it economical for established high-volume processes.

On stainless steel and die steel, continuous contact exposes the diamond edge to sustained pressure, heat, abrasion, and chemical interaction. Edge recession then changes the effective tool geometry and gradually transfers wear-related defects to the machined surface.

Ultrasonic-assisted cutting reduces the effective contact ratio and gives the cutting edge repeated cooling and unloading periods. Experimental work on die steels found that diamond tool life was markedly improved compared with conventional turning. The results also showed that wear depended strongly on feed rate and cutting speed under the tested conditions.

Ultrasonic assistance does not eliminate wear. Excessive amplitude, unstable resonance, improper tool orientation, or aggressive parameters can still cause micro-chipping and poor surface quality.

Which Diamond Turning Process Should You Choose?

Choose conventional diamond turning when:

· The material is aluminum, copper, polymer, or another diamond-compatible material.

· The existing process already meets roughness and form-accuracy requirements.

· Production simplicity and lower equipment cost are priorities.

· Tool wear is stable and predictable.

Choose ultrasonic-assisted diamond machining when:

· Machining stainless steel, hardened steel, carbide, or brittle optical materials.

· Conventional machining causes rapid diamond wear.

· Cutting force or heat is affecting dimensional accuracy.

· A stable optical or mirror-like finish is difficult to maintain.

· Reducing grinding and polishing steps can justify the additional equipment.

Parameters That Determine the Final Result

Successful ultrasonic-assisted turning requires coordinated control of vibration frequency, amplitude, direction, cutting speed, feed rate, depth of cut, tool nose radius, rake angle, and cooling or lubrication.

The goal is not simply to use the highest frequency or amplitude. The process must maintain stable resonance and an appropriate tool trajectory while avoiding uncontrolled impact. Trial cuts should evaluate cutting force, surface roughness, form error, subsurface integrity, and actual tool wear together.

Conclusion

Conventional diamond turning remains the efficient choice for materials that are naturally compatible with diamond tools. For stainless steel and other difficult materials, ultrasonic-assisted diamond machining offers a stronger route to lower cutting force, longer diamond tool life, and a more stable ultra-precision surface finish.

The best process ultimately depends on the workpiece material, required roughness, component geometry, production volume, and ability to optimize the ultrasonic cutting parameters.
