LTCT provides custom ultra-precision diamond tools for manufacturers of optical molds, infrared components, micro-structured optics and high-accuracy metal optical parts. Our ultra-precision single-point diamond tools (SPDT), with their nanoscale processing capabilities, high hardness, low friction and excellent thermal conductivity, perfectly meet the strict requirements of optical components for precision and surface quality. Our tooling solutions support single-point diamond turning, micro-grooving, precision milling and ultrasonic-assisted machining across applications including smartphone cameras, ADAS systems, thermal imaging, AR/VR optics, optical films, laser systems and aerospace detection equipment.
Rather than selecting a tool by component name alone, LTCT evaluates the workpiece material, optical geometry, machine interface, cutting direction, surface finish target and expected cutting distance. This application-based approach helps manufacturers achieve more stable form accuracy, cleaner micro-features, consistent surface quality and predictable tool life.
Diamond tools are used in two principal optical manufacturing routes. The first is direct machining, where the required optical surface is generated directly on a compatible metal, polymer or infrared material. The second is mold manufacturing, where a diamond-turned or diamond-milled mold insert is used to replicate plastic lenses and micro-structured optical products in volume.
LTCT supplies a complete range of ultra-precision diamond tools for both routes, with tool geometry customized around the component design and machining process.
Smartphone cameras, automotive cameras, projection systems, smart-home sensors and miniature imaging modules increasingly use aspheric, freeform and micro-structured plastic lenses. The optical performance of these lenses depends heavily on the accuracy and surface condition of the mold insert.
Single crystal diamond tools can generate optical-quality surfaces on compatible mold materials such as electroless nickel-phosphorus coatings, aluminum and copper alloys. Arc turning tools are suited to continuous curved profiles, while sharp-point and grooving tools can produce Fresnel features, fine grooves and other microstructures.
For a tooling solution developed around a specific optical mold, see our custom diamond turning tools for electro-optics.
Infrared optical systems are used in thermal imaging, night vision, aerospace sensing, industrial temperature measurement, medical instruments, security monitoring and laser equipment. Typical components include spherical and aspheric lenses, diffractive lenses, windows, mirrors and beam-conditioning elements.
Depending on material grade, crystal orientation, component geometry and machining conditions, diamond machining may be applied to infrared materials such as germanium, silicon, zinc selenide, zinc sulfide and calcium fluoride. Because these materials differ considerably in brittleness, abrasiveness and fracture behavior, the tool geometry and machining route must be evaluated for each application.
The objective is not simply to create a reflective surface. The tool must maintain its edge profile throughout the required cutting distance so that form accuracy, surface roughness and optical performance remain consistent across the component.
Fresnel lenses, diffractive optical elements, micro-lens arrays, light-guide structures and optical gratings contain small pitches, narrow grooves or steep feature angles that cannot be produced reliably with a general-purpose cutting tool.
Typical solutions include:
◆ Sharp-point diamond tools for V-grooves and fine diffractive structures
◆ Micro-grooving tools for controlled groove width and depth
◆ Radius tools for continuous lens and mold profiles
◆ Diamond milling tools for freeform and non-axisymmetric structures
◆ Custom tools for fast-tool-servo and slow-tool-servo machining strategies
Tool selection should be based on the groove pitch, included angle, feature depth, corner radius, cutting direction and allowable form error—not simply the overall diameter of the optical component.
Optical film drums are used to replicate large-area microstructures for display films, brightness-enhancement films, light-guide products and other functional optical films. During production, a precision diamond tool cuts continuous grooves or repeated structures into the drum surface, which is then used for high-volume replication.
For these applications, edge retention is especially important. The tool must preserve its profile across a long cutting distance and, in some processes, through more than one finishing pass. LTCT can evaluate natural and synthetic single crystal diamond options according to groove geometry, drum material, cutting length and required replication consistency.

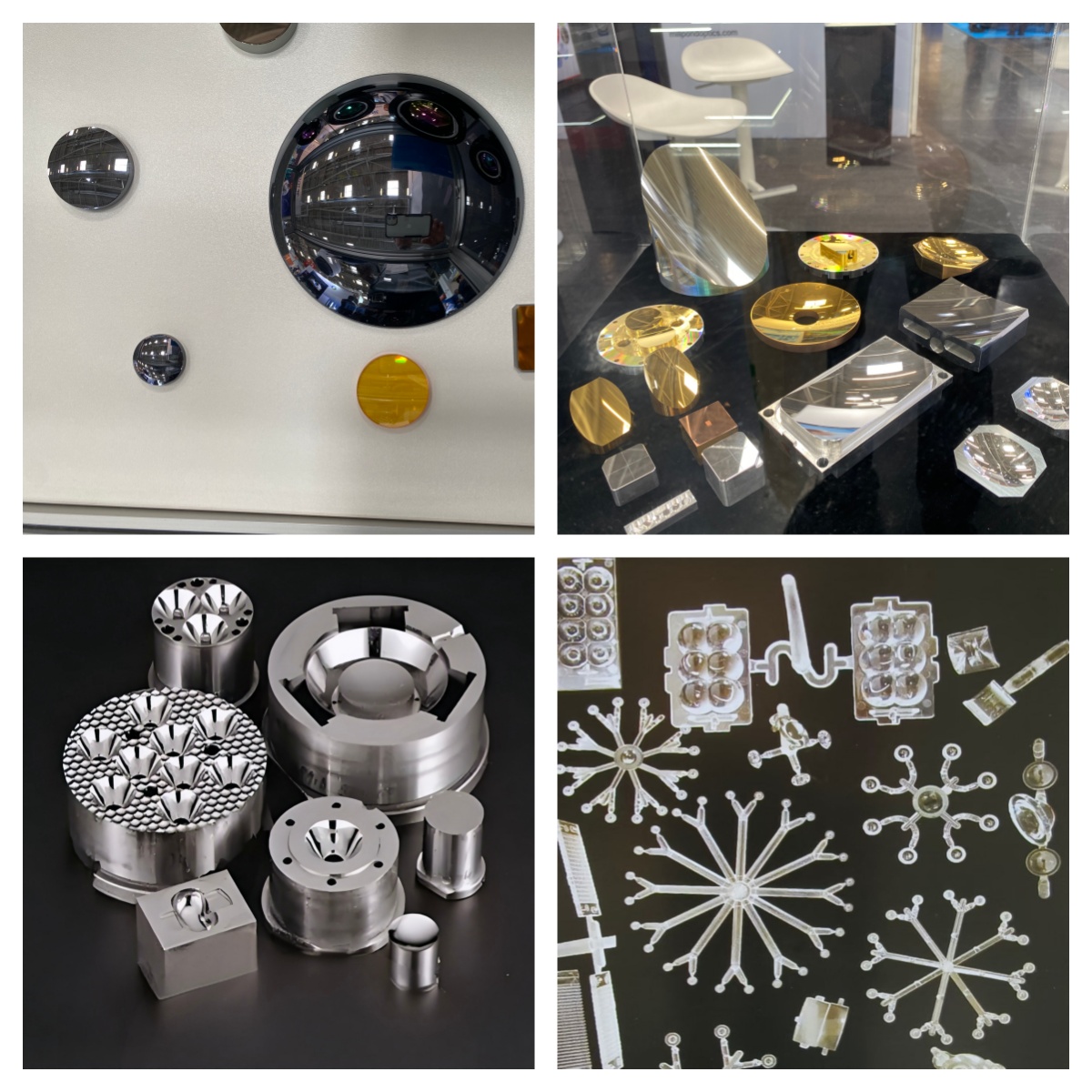

Diamond turning and milling can produce high-quality reflective surfaces on compatible aluminum, copper, brass and nickel-plated components. Typical products include metal mirrors, laser reflectors, optical mounts, off-axis elements and precision parts used in aerospace, defense, scientific instruments and imaging systems.
Axisymmetric surfaces are generally suited to diamond turning. Off-axis, freeform or interrupted geometries may require single crystal diamond milling tools or a specialized machine configuration.
Camera Lens Modules: Precision tooling for aspheric and freeform mold inserts used in periscope telephoto, multi-camera and ultra-wide-angle smartphone lens modules.
AR/VR Optical Components: Diamond tools for miniature projection optics, micro-optical structures and precision components used in compact AR/VR optical systems.
Under-Display Camera Components: Tooling for ultra-thin optical elements and micro-lens structures designed for space-constrained imaging modules.
ADAS Camera Modules: Precision machining and mold tooling for aspheric optical components used in lane recognition, pedestrian detection and other driver-assistance systems.
LiDAR Optical Components: Diamond tools for precision mirrors, collimating optics and other optical elements used in automotive LiDAR systems.
HUD Systems: Tooling for freeform optical surfaces, prisms and micro-structured components used in head-up display systems.
Smart Cameras and Sensors: Precision tooling for miniature lens modules, optical filters and other components used in security cameras and environmental sensors.
Biometric Modules: Small optical components for facial recognition, iris recognition and biometric systems integrated into smart locks and other connected devices.
Ambient Light and Optical Sensors: Tooling for precision reflective and optical components used in light-sensing and compact spectroscopic systems.
Thermal Imaging Systems: Precision tooling for infrared optical components used in long-wave infrared imaging and nighttime target detection.
Low-Light Wide-Angle Cameras: Optical tooling for high-resolution imaging components used in intelligent transportation and security monitoring systems.
High-Speed Dome Cameras: Precision optical components supporting wide fields of view, rapid zoom and compact camera architectures.
Aerospace Infrared Systems: Diamond tooling for optical components made from infrared materials such as germanium and calcium fluoride for remote sensing and thermal imaging.
Medical and Analytical Equipment: Precision tooling for miniature infrared optical components used in diagnostic instruments, spectrometers and related systems.
Industrial Inspection: Optical tooling for non-contact infrared temperature measurement and thermal inspection equipment used in high-temperature and metallurgical environments.
Aluminum, copper, brass and selected nickel-based coatings are commonly used for optical molds, metal mirrors and precision mechanical components. Conventional diamond turning or milling can provide low cutting forces and mirror-like surfaces when the correct edge geometry and cutting parameters are applied.
NiP-coated mold inserts are widely used for replicated plastic optics. Coating hardness, phosphorus content, coating thickness and substrate stability should be confirmed before tool design. These factors affect cutting behavior, tool wear and the final optical surface.
PMMA, polycarbonate and other machinable optical-grade polymers may be turned directly to produce transparent surfaces, prototypes or finished optical components. Tool sharpness, rake geometry, heat generation and chip evacuation must be controlled to reduce haze, tearing and edge defects.
Germanium, silicon, ZnSe, ZnS and CaF₂ may be machined under suitable ductile-regime conditions. Material grade, crystal orientation, tool radius, feed rate and depth of cut all influence the risk of brittle fracture and subsurface damage.
These materials should not automatically be treated as standard SPDT applications. Conventional diamond turning is generally unsuitable for ferrous materials because interaction with iron can accelerate diamond wear. Optical glass, sapphire, ceramics, stainless steel and other hard materials require case-by-case evaluation and may need ultrasonic-assisted diamond tools, grinding, laser-assisted machining or another hybrid process.
The component geometry determines the basic tool style:
◆ Arc or radius turning tools: Aspheric lenses, spherical profiles, mirrors and continuous mold surfaces
◆ Sharp-point tools: Diffractive optics, V-grooves, Fresnel structures and fine optical patterns
◆ Grooving tools: Controlled-width channels, stepped features and optical film drum structures
◆ Boring tools: Internal optical profiles, bores and recessed surfaces
◆ Diamond milling tools: Freeform optics, off-axis components, compound-eye molds and non-axisymmetric microstructures
◆ Ultrasonic-assisted tools: Selected hard, brittle or ferrous materials that are unsuitable for conventional diamond cutting
Final tool design must also consider the machine model, spindle arrangement, cutting direction, center height, toolholder interface and available clearance around the workpiece.
◆ Precision Control: Tool tip profiles are manufactured to nanometer dimensions, and integrated with real-time mechanical positioning systems to ensure consistency and repeatability in optical surface generation.
◆ Extreme Hardness and Wear Resistance: Made from single-crystal or synthetic diamond, our tools offer ultra-low friction and outstanding durability, especially when processing materials like silicon nitride or sapphire.
◆ Intelligent Machining: Through real-time acoustic and vibration signal monitoring, we ensure that every cutting path is executed along the optimal crystal orientation and hardest material axis, maximizing both processing efficiency and surface quality.
We review the component drawing, workpiece material, coating information, optical surface type, machine model and required surface finish.
Our engineers evaluate whether the application is better suited to turning, grooving, milling or ultrasonic-assisted machining. We then recommend the diamond type, nose radius, included angle, rake angle, clearance angle and shank configuration.
A tool drawing is prepared for confirmation before production. Critical dimensions, cutting direction, tool center height and inspection requirements should be agreed upon at this stage.
LTCT manufactures natural and synthetic single crystal diamond tools using application-specific geometries. Cutting edges can be inspected under magnification up to 800×, with tool radius, angles, edge condition and other critical dimensions checked before shipment.
For new optical applications, the initial tool can be evaluated against the required surface and feature geometry. Suitable tools may also be assessed for re-lapping or repair after use, depending on edge damage, remaining diamond size and tool structure.
◆ More Than 20 Years of Diamond Tool Experience: Our technical team has accumulated more than 20 years of experience in precision diamond tool design, grinding and application support.
◆ Custom Geometry Instead of One-Size-Fits-All Tooling: Tool radius, angles, cutting direction, diamond material, shank dimensions and machine interfaces can be developed around the customer’s drawing and process.
◆ Natural and Synthetic Diamond Options: Different optical applications require different balances between edge sharpness, wear resistance, cutting distance, geometry and budget. LTCT evaluates natural and synthetic single crystal diamond options according to the actual machining objective.
◆ Support From Prototype to Repeat Production: We support new component development, replacement of an existing tool, process troubleshooting and repeat tooling for established production programs.
By choosing LTCT as your partner, we can help you achieve:
◆ Surface roughness as low as Ra ≤ 1 nm for a true mirror finish;
◆ Over 30% improvement in machining stability, significantly reducing defect rates;
◆ Full-cycle service support: from sample evaluation and tool selection to on-machine alignment, parameter recommendations, and post-sale technical assistance.
If you are currently manufacturing optical lenses, infrared windows, laser couplers, or optical gratings, we invite you to collaborate with us. We’re ready to provide sample tools, cutting evaluations, and technical advice to help you optimize your processes and boost productivity. Let’s advance electro-optical machining together.
Diamond turning is generally used for rotationally symmetric surfaces such as spherical lenses, aspheric lenses and mirrors. Diamond milling is better suited to freeform, off-axis, interrupted and non-axisymmetric structures. The final choice depends on component geometry and machine capability.
Not always. Aluminum, NiP coatings, polymers and infrared crystals have different cutting behavior and wear mechanisms. Tool radius, rake angle, clearance angle, diamond orientation and cutting parameters should be matched to the specific material.
Sharp-point and micro-grooving diamond tools are commonly used. However, the correct geometry depends on groove pitch, depth, included angle, corner requirement, workpiece material and tool path.
These materials require application evaluation. Some hard and brittle optical materials may need ultrasonic-assisted or hybrid machining rather than conventional diamond turning. A material sample, drawing and machine information are recommended before tool selection.
Yes. Please provide the machine model, holder drawing, tool center height, shank dimensions, cutting direction and existing tool information. LTCT can customize the interface and cutting geometry accordingly.
